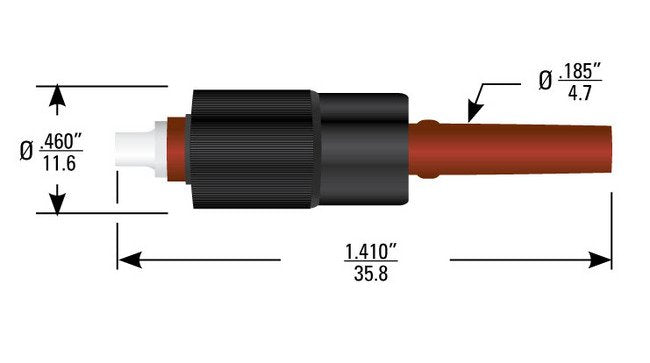

High Voltage Series 737 Silicone Plug Kit
High Voltage Series 737 Silicone Plug Kit
SKU:HIG-59fe81
Enhance connectivity with the High Voltage Series 737 Silicone Plug Kit for 15 kVDC applications. Reliable, high-current capacity, and temperature-resistant design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage Series 737 Silicone Plug Kit
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage Series 737 Silicone Plug Kit
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Series 737 Silicone Plug Kit is designed for 15 kVDC applications, offering reliable connectivity with LGH 1/2LI Series receptacles and Reynolds C737 series receptacles. With a current rating of 4 Amp | 6 Amp and operating temperature range from -55 to 125 ºC, this standard part features a silicone insulator for 0.090 in. wire diameter. The gold-finished BeCu female contacts ensure secure connections, making it ideal for high-reliability single pin connector requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Contact Properties Female Contact Hood Material
Stainless Steel
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Silicone
Specifications Lgh Compatibility
LGH 1/2LI
Specifications Mating Compatibility
Mates all series 737 receptacles and LGH 1/2LI Series receptacles. Also mates Reynolds C737 series RC1515, 2RC1515 and 13RC1515 receptacles; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
737
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
15 kVDC
Specifications Wire Type
FEP
Wire Properties Accomodates Wire Diameter
0.090 in
Wire Properties Wire Pn
167-9543
