High Voltage Shielded Coaxial Cable
High Voltage Shielded Coaxial Cable
SKU:HIG-3c4c2c
Rugged shielded coaxial cable for high voltage military and industrial applications. Silver-plated copper conductors, controlled impedance, and low capacitance ensure superior performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Shielded Coaxial Cable
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Shielded Coaxial Cable
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

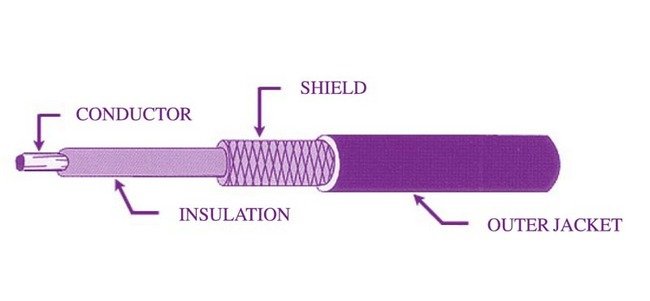

The High Voltage Shielded Coaxial Cable is designed for military and industrial high voltage applications with controlled impedance for optimal performance. Ideal for Radar, ECM systems, power supplies, and instrumentation, this cable ensures fast response times and reliable connectivity for Exploding Bridge wire Detonators (EBW) to Capacitor Discharge Units (CDU). With silver-plated copper conductors, FEP insulation, and shielding properties meeting stringent standards, this cable offers low capacitance, high impedance, and enhanced durability. Reynolds connectors compatible with all cable types are available, completing your high voltage interconnection needs.
Product Specifications
Alternate Cable Part Number Equivalents Nomex Jacketed Silicone
178-9610
Cable Wire Properties Etched
No
Cable Wire Properties Nomex Jacketed
Yes
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Cable Wire Properties Wire Type
Shielded
Shielding Properties Shielding Layers
1
Shielding Properties Shielding Strands
36 AWG
Shielding Properties Shielding Strand Plating
Silver Plated Copper
Specifications Attenuation At 400 Mhz
10.6 db/100 ft
Specifications Capacitance At 1k Hz
31 pF/ft
Specifications Conductor Diameter
0.031 in | 0.125 in
Specifications Conductor Gauge
22 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/34
Specifications Default Color
Natural
Specifications Diameter Over Insulation
0.080 in
Specifications Diameter Over Jacket
0.125 in
Specifications Diameter Over Shield
0.100 in
Specifications Impedance
43 Ω
Specifications Insulator Material
FEP
Specifications Jacket Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.125 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
22 kVDC
Specifications Wire Insulation
0.080 "L"
