High Voltage Shielded Coaxial Cable
High Voltage Shielded Coaxial Cable
SKU:HIG-e7bedd
Reliable high voltage shielded coaxial cable for military and industrial applications, with controlled impedance and foam insulation, ideal for cockpit displays.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Shielded Coaxial Cable
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Shielded Coaxial Cable
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

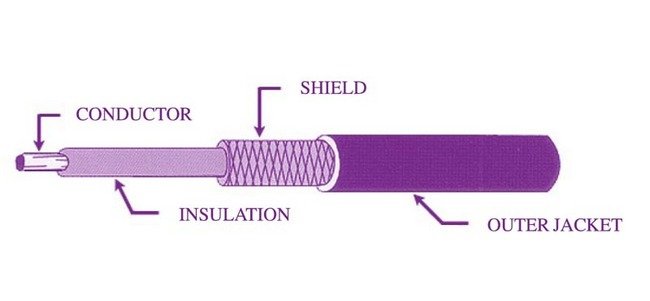

The High Voltage Shielded Coaxial Cable is a reliable solution tailored for military and industrial high voltage applications, including Radar, ECM systems, power supplies, and instrumentation. Designed with controlled impedance, this cable ensures optimal performance. The 178-5065 variant features foam insulation for lower capacitance and higher impedance, making it ideal for cockpit displays. With Reynolds connectors available for all cable types, seamless high voltage interconnections are guaranteed. Pre-conditioning of FEP wire is recommended for temperature cycling resilience. Operating Temperature ranges from -55 to +125 °C.
Product Specifications
Cable Wire Properties Etched
No
Cable Wire Properties Nomex Jacketed
Yes
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Cable Wire Properties Wire Type
Shielded
Shielding Properties Shielding Layers
1
Shielding Properties Shielding Strands
36 AWG
Shielding Properties Shielding Strand Plating
Tin Plated Copper
Specifications Attenuation At 400 Mhz
16 db/100 ft
Specifications Capacitance At 1k Hz
48 pF/ft
Specifications Conductor Diameter
0.059 in | 0.195 in
Specifications Conductor Gauge
16 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Tin Plated
Specifications Conductor Strands
18/29
Specifications Default Color
Red
Specifications Diameter Over Insulation
0.118 in
Specifications Diameter Over Jacket
0.195 in
Specifications Diameter Over Shield
0.150 in
Specifications Impedance
31 Ω
Specifications Insulator Material
PE
Specifications Jacket Material
PE
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.195 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
20 kVDC
Specifications Wire Insulation
"L"
