High Voltage Silicone Coated FEP Cable with Nomex Jacket
High Voltage Silicone Coated FEP Cable with Nomex Jacket
SKU:HIG-8b2a8c
High Voltage Silicone Coated FEP Cable with Nomex Jacket - Superior dielectric bond, exceptional abrasion resistance, 20 AWG.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage Silicone Coated FEP Cable with Nomex Jacket
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage Silicone Coated FEP Cable with Nomex Jacket
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

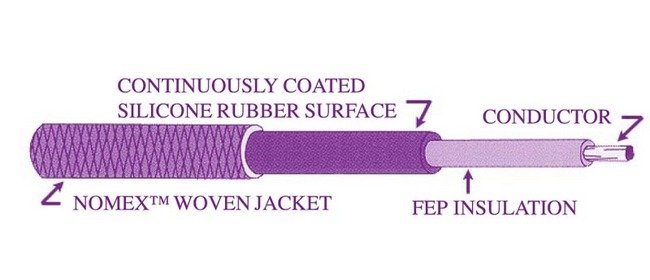

Enhance your wiring solutions with our High Voltage Silicone Coated FEP Cable featuring a protective Nomex jacket. The silicone coating ensures superior dielectric bond, while the Nomex jacket adds exceptional abrasion resistance. This cable, with 20 AWG silver-plated copper conductor strands, operates efficiently in temperatures ranging from -55 to 125 °C. Ideal for applications requiring high voltage insulation and durability.
Product Specifications
Alternate Cable Part Number Equivalents Etched Part Number
178-9123
Alternate Cable Part Number Equivalents Silicone Coated Part Num
178-8315
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
Yes
Cable Wire Properties Silicone Coated
Yes
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.039 in | 0.090 in | 1.010 mm
Specifications Conductor Gauge
20 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/32
Specifications Default Color
Natural
Specifications Diameter Over Silicone Coating
0.090 in | 2.290 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.090 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
25 kVDC
