High Voltage Silicone Coated FEP Cable with Nomex Jacket
High Voltage Silicone Coated FEP Cable with Nomex Jacket
SKU:HIG-19e76a
High Voltage Silicone Coated FEP Cable with Nomex Jacket, ideal for high voltage applications, offers superior abrasion resistance & strong dielectric bond.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Voltage Silicone Coated FEP Cable with Nomex Jacket
$24.99
Quantity: 1
Claim Your Seller Account
High Voltage Silicone Coated FEP Cable with Nomex Jacket
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

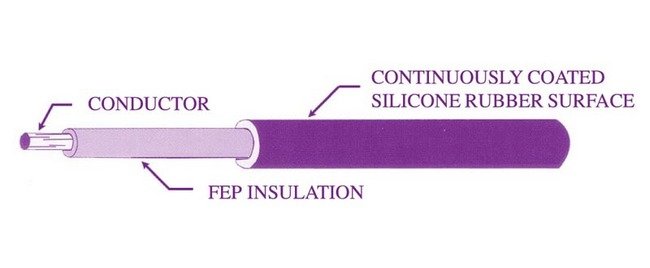

The High Voltage Silicone Coated FEP Cable with Nomex Jacket combines the durability of a silicone coating with the protective benefits of a Nomex woven jacket, offering superior abrasion resistance. This cable ensures a strong dielectric bond when using silicone rubber potting or adhesives. With a conductor gauge of 20 AWG and a voltage rating of 30 kVDC, this cable is ideal for high voltage applications. Operating smoothly in temperatures ranging from -55 to 125 ºC, it meets stringent industry standards for performance and reliability.
Product Specifications
Alternate Cable Part Number Equivalents Etched Part Number
178-8195
Alternate Cable Part Number Equivalents Silicone Coated Part Num
178-7601
Alternate Cable Part Number Equivalents Silver Plated Conductor
178-9554
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
Yes
Cable Wire Properties Nomex Jacketed Etched Part Number
178-8361
Cable Wire Properties Silicone Coated
Yes
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.110 in | 2.794 mm
Specifications Conductor Gauge
20 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Tin Plated
Specifications Conductor Strands
19/32
Specifications Default Color
Natural
Specifications Diameter Over Silicone Coating
0.110 in | 2.794 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.110 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
30 kVDC
