High Voltage Silicone Coated FEP Cable with Nomex Jacket
High Voltage Silicone Coated FEP Cable with Nomex Jacket
SKU:HIG-baa08e
High Voltage Silicone Coated FEP Cable with Nomex Jacket - Superior protection with excellent abrasion resistance. Ideal for high voltage applications. Operating temperature: -55 to 125 °C.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage Silicone Coated FEP Cable with Nomex Jacket
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage Silicone Coated FEP Cable with Nomex Jacket
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

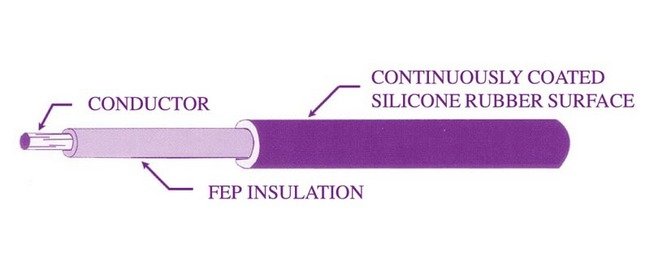

The High Voltage Silicone Coated FEP Cable with Nomex Jacket offers superior protection with its silicone-coated FEP insulation and Nomex woven jacket, ensuring excellent abrasion resistance. This cable features a conductor gauge of 20 AWG with Tin Plated strands, making it ideal for high voltage applications. With an operating temperature range of -55 to 125 °C, this cable provides reliable performance in diverse environments. The silicone coating enhances dielectric strength, and the Nomex jacket reinforces durability, making it suitable for demanding industrial and institutional settings.
Product Specifications
Alternate Cable Part Number Equivalents Etched Part Number
178-8075
Alternate Cable Part Number Equivalents Silicone Coated Part Num
178-7600
Alternate Cable Part Number Equivalents Silver Plated Conductor
178-8881
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
Yes
Cable Wire Properties Nomex Jacketed Etched Part Number
178-8360
Cable Wire Properties Silicone Coated
Yes
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.090 in | 2.286 mm
Specifications Conductor Gauge
20 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Tin Plated
Specifications Conductor Strands
19/32
Specifications Default Color
Natural
Specifications Diameter Over Silicone Coating
0.090 in | 2.286 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.090 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
25 kVDC
