High Voltage Silicone Coated FEP Cable with Nomex Jacket

Name: High Voltage Silicone Coated FEP Cable with Nomex Jacket
Brand: Teledyne Reynolds
SKU: HIG-44e7cc
Price: 24.99 USD
Availability: OutOfStock

SKU:HIG-44e7cc

High voltage FEP cable with Nomex jacket for superior dielectric bond and abrasion resistance. Operates from -55 to 125 °C.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

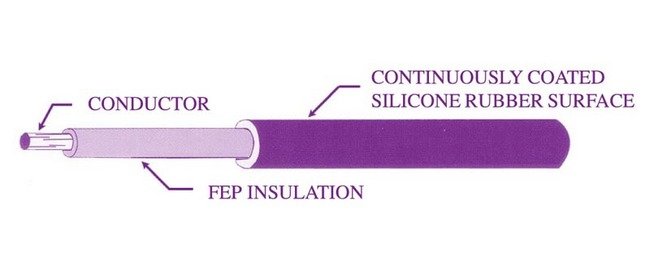

Experience superior dielectric bond and abrasion resistance with our high voltage silicone coated FEP cable featuring a Nomex woven protective jacket. The silicone coating ensures excellent potting characteristics, while the Nomex jacket provides added durability. This standard part, with a conductor gauge of 22 AWG and 20 kVDC voltage rating, operates flawlessly in temperatures ranging from -55 to 125 °C, making it ideal for demanding applications.

Product Specifications

Alternate Cable Part Number Equivalents Etched Part Number

178-8193

Alternate Cable Part Number Equivalents Silicone Coated Part Num

178-7599

Cable Wire Properties Etched

Cable Wire Properties Jacketed

Yes

Cable Wire Properties Nomex Jacketed Etched Part Number

178-8359

Cable Wire Properties Silicone Coated

Yes

Cable Wire Properties Twisted Pair

Cable Wire Properties Twisted Shielded Pair

Specifications Conductor Diameter

0.070 in | 1.778 mm

Specifications Conductor Gauge

22 AWG

Specifications Conductor Material

Copper

Specifications Conductor Plating

Tin Plated

Specifications Conductor Strands

19/34

Specifications Default Color

Natural

Specifications Diameter Over Silicone Coating

0.070 in | 1.778 mm

Specifications Insulator Material

FEP

Specifications Operating Temperature

-55 to 125 ÂºC

Specifications Overall Diameter

0.070 in

Specifications Standardnon Standard

Standard Part

Specifications Voltage Rating

20 kVDC

High Voltage Silicone Coated FEP Cable with Nomex Jacket
