High Voltage Silicone Coated FEP Cable with Nomex Jacket
High Voltage Silicone Coated FEP Cable with Nomex Jacket
SKU:HIG-ec57d0
High Voltage Silicone Coated FEP Cable with Nomex Jacket - Superior durability & dielectric properties for high voltage applications. Operates from -55 to +125 °C.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage Silicone Coated FEP Cable with Nomex Jacket
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage Silicone Coated FEP Cable with Nomex Jacket
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

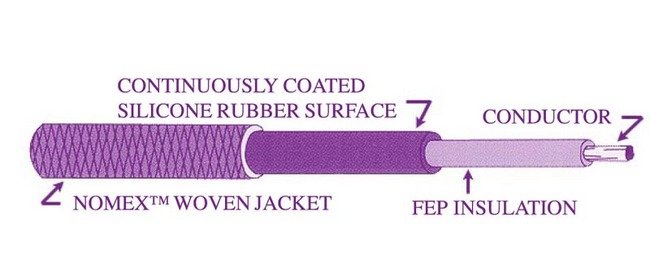

Experience superior durability and dielectric properties with our High Voltage Silicone Coated FEP Cable featuring a protective Nomex jacket. This cable combines the potting characteristics of silicone rubber with excellent abrasion resistance from the Nomex woven jacket. With a robust construction, it operates efficiently in a wide temperature range from -55 to +125 °C, making it ideal for high voltage applications. The silver-plated copper conductor and FEP insulator ensure reliable performance, while meeting standard industry specifications.
Product Specifications
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
Yes
Cable Wire Properties Silicone Coated
Yes
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.025 in | 0.060 in | 0.640 mm
Specifications Conductor Gauge
24 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/36
Specifications Default Color
Natural
Specifications Diameter Over Silicone Coating
0.060 in | 1.520 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.060 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
18 kVDC
