High Voltage Silicone Coated FEP Wire
High Voltage Silicone Coated FEP Wire
SKU:HIG-3bdf6d
Premium silicone coated FEP wire for high voltage applications, featuring superior dielectric properties and wide temperature range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage Silicone Coated FEP Wire
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage Silicone Coated FEP Wire
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

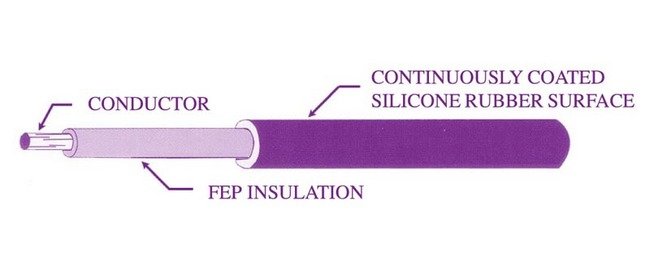

The High Voltage Silicone Coated FEP Wire features a uniform silicone rubber coating over FEP insulation, providing exceptional dielectric properties and potting compatibility. With a silver-plated copper conductor and a voltage rating of 10 kVDC, this wire ensures reliable performance in high voltage applications. Its -55 to 125 °C operating temperature range and standard compliance make it an ideal choice for both consumer and institutional use.
Product Specifications
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
Yes
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Gauge
24 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/36
Specifications Default Color
Natural
Specifications Diameter Over Silicon Coating
0.060 in | 1.524 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.060 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
10 kVDC
