High Voltage Silicone Coated FEP Wire

Name: High Voltage Silicone Coated FEP Wire
Brand: Teledyne Reynolds
SKU: HIG-f31b17
Price: 24.99 USD
Availability: OutOfStock

SKU:HIG-f31b17

Premium High Voltage Silicone Coated FEP Wire for superior dielectric bonding and high voltage applications. 26 AWG Copper Conductor. Operating Temp: -55 to 125°C.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

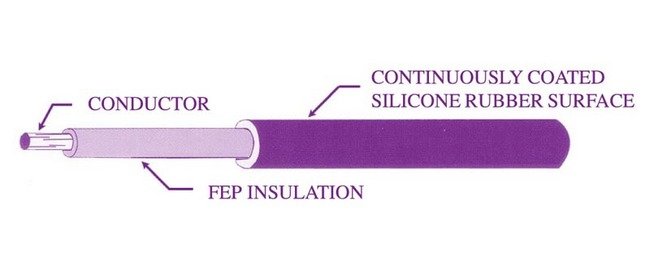

The High Voltage Silicone Coated FEP Wire features a uniform silicone rubber coating that enhances potting characteristics, ensuring superior dielectric bonds with silicone rubber potting materials. This wire is meticulously designed with a 26 AWG copper conductor, tin-plated for optimal performance. With an operating temperature of -55 to 125°C, this standard part meets high voltage requirements with a voltage rating of 18 kVDC. Ideal for applications demanding reliability, flexibility, and exceptional insulation properties.

Product Specifications

Alternate Cable Part Number Equivalents Etched Part Number

178-8194

Alternate Cable Part Number Equivalents Nomex Jacketed Silicone

178-7739

Alternate Cable Part Number Equivalents Silver Plated Conductor

178-8074

Cable Wire Properties Etched

Cable Wire Properties Jacketed

Cable Wire Properties Silicone Coated

Yes

Cable Wire Properties Twisted Pair

Cable Wire Properties Twisted Shielded Pair

Specifications Conductor Gauge

26 AWG

Specifications Conductor Material

Copper

Specifications Conductor Plating

Tin Plated

Specifications Conductor Strands

19/38

Specifications Default Color

Natural

Specifications Diameter Over Silicon Coating

0.060 in | 1.524 mm

Specifications Insulator Material

FEP

Specifications Operating Temperature

-55 to 125 ÂºC

Specifications Overall Diameter

0.060 in

Specifications Standardnon Standard

Standard Part

Specifications Voltage Rating

18 kVDC

High Voltage Silicone Coated FEP Wire
