High Voltage Silicone Coated FEP Wire 20 AWG

Name: High Voltage Silicone Coated FEP Wire 20 AWG
Brand: Teledyne Reynolds
SKU: HIG-751b3d
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-751b3d

High Voltage Silicone Coated FEP Wire for superior dielectric performance in industrial applications. 20 AWG conductor, silver-plated copper.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

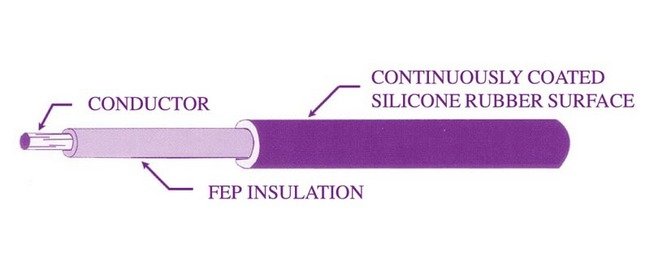

The High Voltage Silicone Coated FEP Wire features a uniform silicone rubber coating over FEP insulation, providing exceptional dielectric properties and compatibility with silicone potting materials. With a 20 AWG silver-plated copper conductor, this wire ensures reliable performance in high-voltage applications. Operating temperature ranges from -55 to 125 °C, making it ideal for various industrial settings. Its standard part construction meets stringent quality standards, offering durable and efficient electrical connectivity.

Product Specifications

Alternate Cable Part Number Equivalents Etched Part Number

178-9123

Alternate Cable Part Number Equivalents Nomex Jacketed Silicone

178-8881

Cable Wire Properties Etched

Cable Wire Properties Jacketed

Cable Wire Properties Silicone Coated

Yes

Cable Wire Properties Twisted Pair

Cable Wire Properties Twisted Shielded Pair

Specifications Conductor Diameter

0.039 in | 1.010 mm

Specifications Conductor Gauge

20 AWG

Specifications Conductor Material

Copper

Specifications Conductor Plating

Silver Plated

Specifications Conductor Strands

19/32

Specifications Default Color

Natural

Specifications Diameter Over Silicon Coating

0.090 in | 2.290 mm

Specifications Insulator Material

FEP

Specifications Operating Temperature

-55 to 125 ÂºC

Specifications Overall Diameter

0.090 in

Specifications Standardnon Standard

Standard Part

Specifications Voltage Rating

22 kVDC
