High Voltage Silicone Coated FEP Wire 20 AWG
High Voltage Silicone Coated FEP Wire 20 AWG
SKU:HIG-0e00b6
High Voltage Silicone Coated FEP Wire 20 AWG for superior dielectric bonding in high voltage applications.
Regular price
$16.99
Regular price
Sale price
$16.99
Unit price
per
Initiate Order
High Voltage Silicone Coated FEP Wire 20 AWG
$16.99
Quantity: 1
Claim Your Seller Account
High Voltage Silicone Coated FEP Wire 20 AWG
$16.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

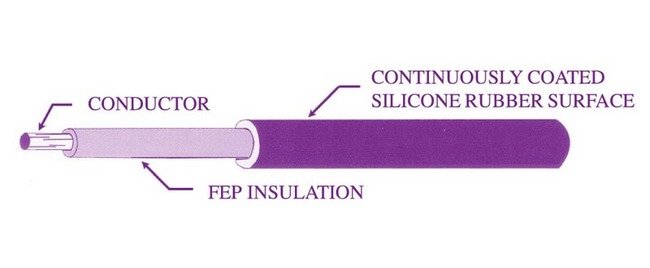

The High Voltage Silicone Coated FEP Wire 20 AWG features a uniform silicone rubber coating over FEP insulation, ensuring superior dielectric bonding with silicone rubber potting materials. With a conductor gauge of 20 AWG and tin-plated copper conductor strands, this wire offers optimal performance in high voltage applications. Designed for an operating temperature range of -55 to 125 °C, it meets stringent industry standards for reliability and safety.
Product Specifications
Alternate Cable Part Number Equivalents Etched Part Number
178-8075
Alternate Cable Part Number Equivalents Nomex Jacketed Silicone
178-7741
Alternate Cable Part Number Equivalents Silver Plated Conductor
178-8315
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
No
Cable Wire Properties Nomex Jacketed Etched Part Number
178-8360
Cable Wire Properties Silicone Coated
Yes
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Gauge
20 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Tin Plated
Specifications Conductor Strands
19/32
Specifications Default Color
Natural
Specifications Diameter Over Silicon Coating
0.090 in | 2.286 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.090 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
25 kVDC
