High Voltage Silicone Coated FEP Wire - 22 AWG Silver Plated Copper Conductor
High Voltage Silicone Coated FEP Wire - 22 AWG Silver Plated Copper Conductor
SKU:HIG-2120ea
Enhance your wiring setups with our high voltage Silicone Coated FEP Wire - ideal for both consumer and institutional needs.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Voltage Silicone Coated FEP Wire - 22 AWG Silver Plated Copper Conductor
$24.99
Quantity: 1
Claim Your Seller Account
High Voltage Silicone Coated FEP Wire - 22 AWG Silver Plated Copper Conductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

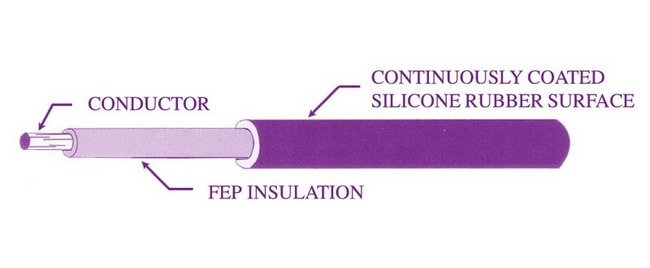

Upgrade your wiring systems with our high-quality Silicone Coated FEP Wire. Featuring a uniform silicone rubber coating for superior dielectric bond, this wire is designed for high voltage applications. With a Conductor Gauge of 22 AWG, 19/34 Strands, and Silver Plated Copper Conductor, it ensures reliable performance in temperatures ranging from -55 to 125°C. This Standard Part meets stringent industry standards, offering durability and efficiency for both consumer and institutional needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
Yes
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Gauge
22 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/34
Specifications Default Color
Natural
Specifications Diameter Over Silicon Coating
0.070 in | 1.778 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.070 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
20 kVDC
