High Voltage Silicone Coated FEP Wire - 28 AWG Silver Plated Conductor
High Voltage Silicone Coated FEP Wire - 28 AWG Silver Plated Conductor
SKU:HIG-8cc54d
High voltage silicone coated FEP wire with 28 AWG silver plated conductor for superior dielectric bond. Operating temp: -55 to 125°C.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Voltage Silicone Coated FEP Wire - 28 AWG Silver Plated Conductor
$24.99
Quantity: 1
Claim Your Seller Account
High Voltage Silicone Coated FEP Wire - 28 AWG Silver Plated Conductor
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

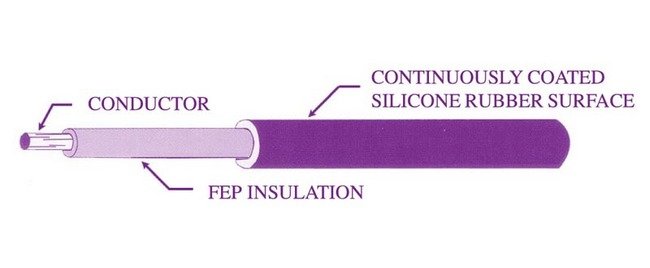

Experience exceptional performance with our high voltage silicone coated FEP wire featuring a 28 AWG silver plated conductor. The uniform silicone rubber coating enhances potting characteristics, ensuring a superior dielectric bond. With an operating temperature of -55 to 125°C, this wire is ideal for applications requiring reliability and durability. Trust in the quality of this standard part with copper conductor material, meeting strict industry standards for high voltage wire and cable applications.
Product Specifications
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
Yes
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.014 in | 0.370 mm
Specifications Conductor Gauge
28 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
41/44
Specifications Default Color
Natural
Specifications Diameter Over Silicon Coating
0.048 in | 1.220 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.048 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
13 kVDC
