High Voltage Silicone Coated FEP Wire
High Voltage Silicone Coated FEP Wire
SKU:HIG-4526da
Enhance projects with our High Voltage Silicone Coated FEP Wire for superior performance in high voltage applications. Order now!
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Voltage Silicone Coated FEP Wire
$24.99
Quantity: 1
Claim Your Seller Account
High Voltage Silicone Coated FEP Wire
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

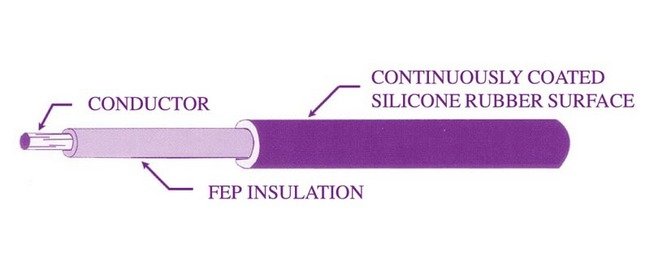

Experience premium performance with our High Voltage Silicone Coated FEP Wire. Featuring a uniform silicone rubber coating over FEP insulation, this wire ensures superior dielectric properties, ideal for high voltage applications. The silver-plated copper conductor and standard 22 AWG gauge provide reliability and conductivity. Operating temperature ranging from -55 to 125°C offers wide utility. Trust our product for efficient potting characteristics compatible with silicone rubber materials. Order with ease by specifying length in feet or meters using the part number. Elevate your projects with our dependable High Voltage Silicone Coated FEP Wire.
Product Specifications
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
Yes
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.031 in | 0.800 mm
Specifications Conductor Gauge
22 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/34
Specifications Default Color
Natural
Specifications Diameter Over Silicon Coating
0.065 in | 1.650 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.065 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
18 kVDC
