High Voltage Silicone Coated FEP Wire

Name: High Voltage Silicone Coated FEP Wire
Brand: Teledyne Reynolds
SKU: HIG-d5b92e
Price: 24.99 USD
Availability: OutOfStock

SKU:HIG-d5b92e

High Voltage Silicone Coated FEP Wire with 20 AWG copper conductor, silicone rubber coating, and 30 kVDC voltage rating for superior dielectric performance.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

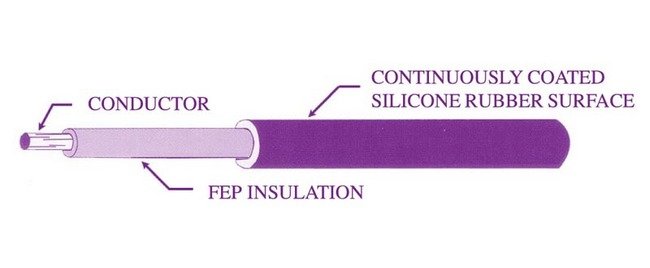

The High Voltage Silicone Coated FEP Wire features a uniform silicone rubber coating over FEP insulation, providing excellent dielectric properties and potting characteristics. Ideal for applications requiring a superior dielectric bond, this wire boasts a 20 AWG copper conductor, tin plating, and a voltage rating of 30 kVDC. With an operating temperature of -55 to 125 °C, it meets standard part specifications and offers reliability in diverse environments.

Product Specifications

Alternate Cable Part Number Equivalents Etched Part Number

178-8195

Alternate Cable Part Number Equivalents Nomex Jacketed Silicone

178-7742

Alternate Cable Part Number Equivalents Silver Plated Conductor

178-8781

Cable Wire Properties Etched

Cable Wire Properties Jacketed

Cable Wire Properties Nomex Jacketed Etched Part Number

178-8361

Cable Wire Properties Silicone Coated

Yes

Cable Wire Properties Twisted Pair

Cable Wire Properties Twisted Shielded Pair

Specifications Conductor Gauge

20 AWG

Specifications Conductor Material

Copper

Specifications Conductor Plating

Tin Plated

Specifications Conductor Strands

19/32

Specifications Default Color

Natural

Specifications Diameter Over Silicon Coating

0.110 in | 2.794 mm

Specifications Insulator Material

FEP

Specifications Operating Temperature

-55 to 125 ÂºC

Specifications Overall Diameter

0.110 in

Specifications Standardnon Standard

Standard Part

Specifications Voltage Rating

30 kVDC

High Voltage Silicone Coated FEP Wire
