High Voltage Silicone Wire, 1.37mm O.D., 22 AWG
High Voltage Silicone Wire, 1.37mm O.D., 22 AWG
SKU:WIR-51a06b
High voltage silicone wire with TUFFSIL insulation, high temp resistance, and customization options.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
High Voltage Silicone Wire, 1.37mm O.D., 22 AWG
$25.99
Quantity: 1
Claim Your Seller Account
High Voltage Silicone Wire, 1.37mm O.D., 22 AWG
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

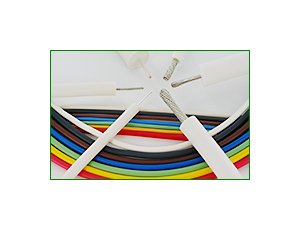

The Tuffsil Silicone Wire boasts TUFFSIL insulation with a standard silver-plated conductor, offering high temperature resistance from -55°C to 200°C (intermittent up to 250°C). With a high voltage range of 600 VDC to 100 KVDC and conductor sizes ranging from 24 AWG to 1 AWG, this wire ensures high flexibility and durability. It is ozone and corona resistant, radiation resistant, flame resistant meeting the UL 3239 VW-1 Flame Test. Additionally, it is RoHS compliant, and customizable constructions are available upon request.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Ozone and corona ResistantRadiation ResistantFlame Resistance meets the UL 3239 VW-1 Flame TestReference: MIL-W-16878RoHS Compliant
Note 0
Standard Construction. Special Constructions such as tin plated conductors and other conductor constructions are available upon request.
Specifications Color
Red
Specifications Direct Current Dc Voltage
2 kV
Specifications Finished Outer Diameter Od
1.37 mm | 0.054 in
Specifications Manufacturer
Wiremax
Specifications Stranding Construction
19/34
Specifications Wire Size
22 AWG
