High Voltage Silver-Plated Shielded Cable - 22 AWG
High Voltage Silver-Plated Shielded Cable - 22 AWG
SKU:HIG-3d2ad7
High Voltage Silver-Plated Shielded Cable - 22 AWG: Optimal performance in military, industrial, and government applications with controlled impedance and high safety standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage Silver-Plated Shielded Cable - 22 AWG
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage Silver-Plated Shielded Cable - 22 AWG
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

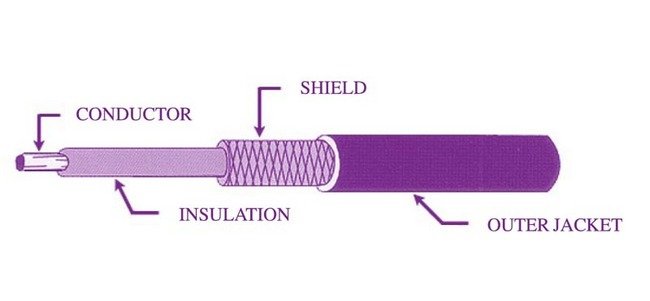

Experience unmatched safety and reliability with our High Voltage Silver-Plated Shielded Cable. Ideal for military, industrial, and government applications, this cable boasts controlled impedance, low capacitance, and high impedance for optimal performance. With a voltage rating of 25 kVDC and compliance with strict industry standards, including FEP insulation and silver-plated copper shielding, this cable ensures seamless connectivity in high voltage environments.
Product Specifications
Cable Wire Properties Etched
No
Cable Wire Properties Nomex Jacketed
Yes
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Cable Wire Properties Wire Type
Shielded
Shielding Properties Shielding Layers
1
Shielding Properties Shielding Strands
36 AWG
Shielding Properties Shielding Strand Plating
Silver Plated Copper
Specifications Capacitance At 1k Hz
29.3 pF/ft
Specifications Conductor Diameter
0.031 in | 0.145 in
Specifications Conductor Gauge
22 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/34
Specifications Default Color
Natural
Specifications Diameter Over Insulation
0.100 in
Specifications Diameter Over Jacket
0.145 in
Specifications Diameter Over Shield
0.120 in
Specifications Impedance
50 Ω
Specifications Insulator Material
FEP
Specifications Jacket Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.145 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
25 kVDC
Specifications Wire Insulation
0.100 "L"
