High-Voltage Single Pin Cable Assembly C730 Positive Stop Ferrule
High-Voltage Single Pin Cable Assembly C730 Positive Stop Ferrule
SKU:HIG-fb28d2
Reliable high-voltage single pin cable assembly for secure power transmission in demanding environments.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High-Voltage Single Pin Cable Assembly C730 Positive Stop Ferrule
$49.99
Quantity: 1
Claim Your Seller Account
High-Voltage Single Pin Cable Assembly C730 Positive Stop Ferrule
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 730 Cable Assembly Positive Stop (ferrule) Single-Ended is a high-quality high-voltage cable assembly designed for reliability and performance. With a current rating of 10 A and a test voltage of 15 kVDC, this assembly ensures safe and efficient power transmission. Featuring a temperature range of -55 to 95 °C, it is suitable for varied operating conditions. The plastic insulator material and threaded coupling style offer durability and secure connections. Compliant with industry standards, this assembly is ideal for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

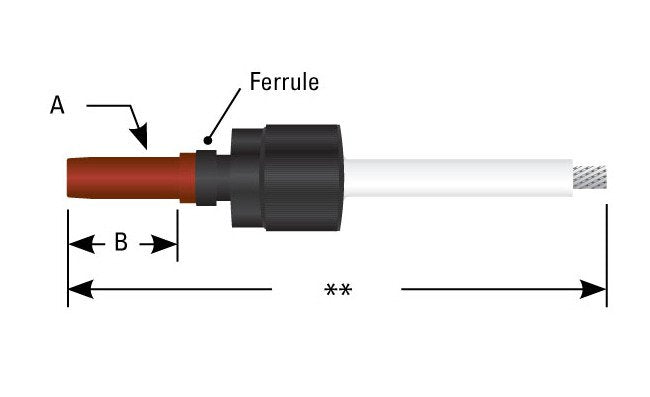

Dimensions A Diameter
.186 in | 4.7 mm
Dimensions B
.530 in | 13.4 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
All C 730 series receptaclesAll series 730 receptaclesAll LGH 1/2I series receptacles.
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 730
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC
Specifications Voltage Rating
10 kVDC
Specifications Wire Insulation
White 0.160 Dia. silicone rubber, #AWG 16
Specifications Wire Pn
178-9863
