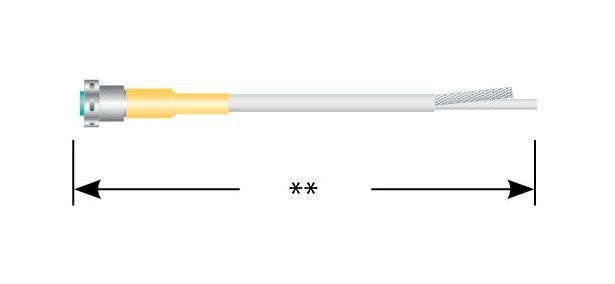

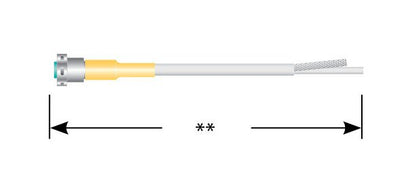

High Voltage Single Pin Cable Assembly, Shielded, Hex Plug
High Voltage Single Pin Cable Assembly, Shielded, Hex Plug
SKU:HIG-4d4b79
Reliable High Voltage Single Pin Cable Assembly for extreme conditions. Mates with all Series 600 receptacles. Threaded coupling, Brass coupling nut, BeCu contacts.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Single Pin Cable Assembly, Shielded, Hex Plug
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Single Pin Cable Assembly, Shielded, Hex Plug
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Single Pin Cable Assembly is a part of the renowned 600 Series, offering exceptional reliability since 1964. With a voltage rating of 5 kVDC and an altitude tolerance of 70,000 ft., this shielded assembly is ideal for Aerospace/Defense and high-end commercial applications. Featuring a Single-Ended Plug design, gold-plated Brass coupling nut, and BeCu contacts, it ensures secure connections at extreme temperatures (-55 to 125 ºC). Mating compatibility with all Series 600 receptacles and a threaded coupling style further enhance its usability. This standard part meets rigorous industry standards, making it a trusted choice for high voltage applications.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated | Passivated
Body Properties Coupling Nut Material
Brass | Stainless Steel
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Hex Coupling
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
Yes
Specifications Mating Compatibility
Mates all Series 600 receptacles
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
600
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
Specifications Wire Type
Shielded
