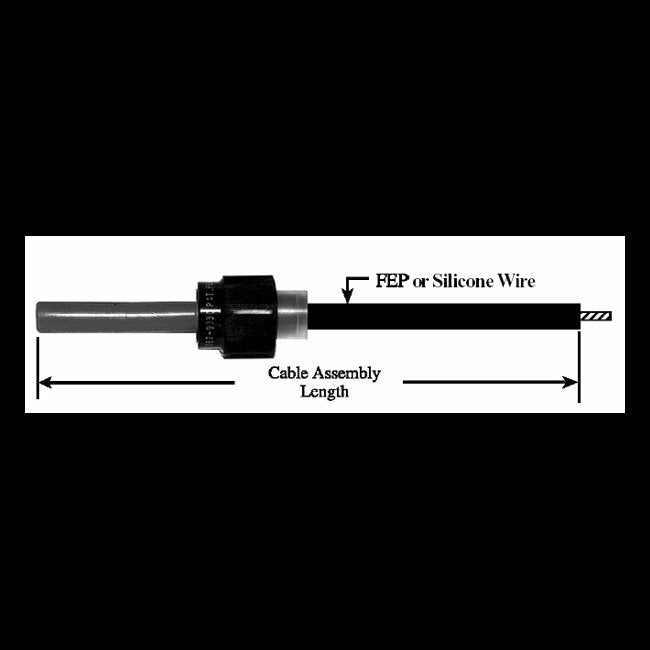

High Voltage Single Pin Cable Connector Kit
High Voltage Single Pin Cable Connector Kit
SKU:HIG-6006cc
Reliable High Voltage Connector Kit for Military/Aerospace applications, featuring improved temperature range exposure and easy assembly.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
High Voltage Single Pin Cable Connector Kit
$99.99
Quantity: 1
Claim Your Seller Account
High Voltage Single Pin Cable Connector Kit
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched reliability with our High Voltage Single Pin Cable Connector Kit. Designed for altitudes up to 70,000 ft. and operating temperatures ranging from -55°C to 125°C, this kit offers improved temperature range exposure and annular sealing rings for enhanced performance. The HI-REL plugs, suitable for Military/Aerospace applications, come in kit form for easy cable assembly fabrication. With a current rating of 2.5 to 10 amps and compatibility with various LGH™ interfaces, this connector kit is a trusted choice for Electronic Countermeasure Systems, TWT connections, lasers, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 2.5 Amp
Specifications Export Classification
TBD
Specifications Mating Connectors
Mates all series 727 receptacles and all LGH 1LI series receptacles. Also mates Reynolds C727 receptacle RC1535 ; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
727
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
25 kVDC
