The 12-18 kVDC - Ruggedized PeeWee Series High Voltage Single Pin Connector is designed for demanding applications in high voltage environments. Featuring a double-ended, straight plug with .070 Si-Coated FEP wire, this connector ensures reliable connections. With a current rating of 5 Amp and a test voltage of 18 kVDC, it meets the rigorous standards for High Voltage Power Supplies, TWT/TWTA, Semiconductor Wafer Processing, and various other industrial and military applications. Operating within a wide temperature range of -55 to 125 °C, this connector is suitable for critical operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic

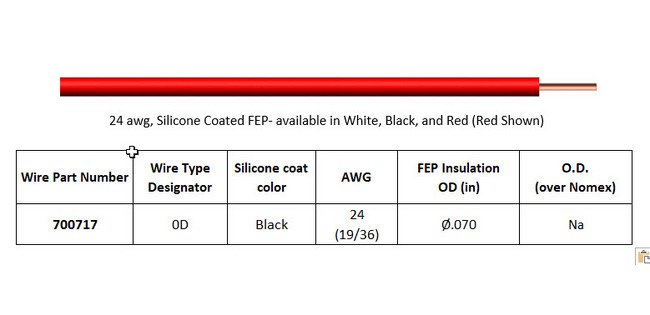

Cable Wire Properties Wire Diameter
Ã.070 in
Cable Wire Properties Wire Insulation
Silicone coated FEP
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug, Straight, Double-Ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
