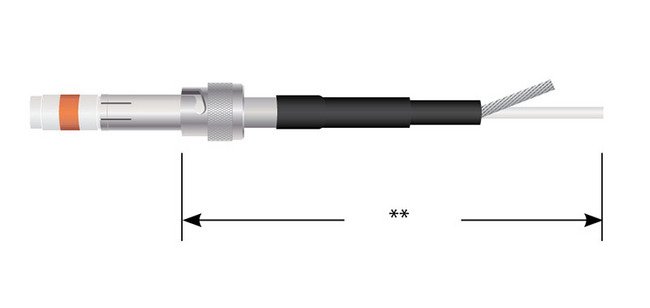

High Voltage Single Pin Connector - 521 Series Single-Ended Cable Assembly
High Voltage Single Pin Connector - 521 Series Single-Ended Cable Assembly
SKU:HIG-f2e972
Enhanced safety and reliable performance in high voltage applications with the 521 Series Single-Ended Cable Assembly.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
High Voltage Single Pin Connector - 521 Series Single-Ended Cable Assembly
$149.99
Quantity: 1
Claim Your Seller Account
High Voltage Single Pin Connector - 521 Series Single-Ended Cable Assembly
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 521 Series Single-Ended Cable Assembly is engineered for safety in high voltage environments, featuring recessed contacts that minimize electrical shock risks. With a voltage rating of 25 kVDC at 70,000 ft and a test voltage of 41 kVDC at 70,000 ft, this connector ensures reliable performance in challenging conditions. Its bayonet coupling style, crimp braid termination, and BeCu/Au plug contact material further enhance durability and conductivity. Operating between -40 to 85°C, this assembly is designed to meet stringent standards for institutional and government procurement.
Product Specifications
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
20 A
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
521
Specifications Test Voltage 70000 Ft
41
Specifications Test Voltage At Sea Level
28 kVDC
Specifications Voltage Rating
25 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
