High voltage single pin connector assembly for 10-50 kVDC applications. Threaded coupling style, 10 A current rating, plastic insulator material.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Single Pin Connector Assembly C-740 Series
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Single Pin Connector Assembly C-740 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 740 Cable Assembly Non-Positive Stop (washers) is a robust solution designed for high voltage applications, ranging from 10 kVDC to 50 kVDC. This Single-Ended Plug Cable Assembly boasts a current rating of 10 A, suitable for demanding environments with an operating temperature range of -55 to 95°C. With a Test Voltage of 50 kVDC and insulator material made of durable plastic, this non-standard part ensures reliable performance. Its threaded coupling style and gold-finished BeCu contacts make it a secure and efficient choice for high voltage connectivity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

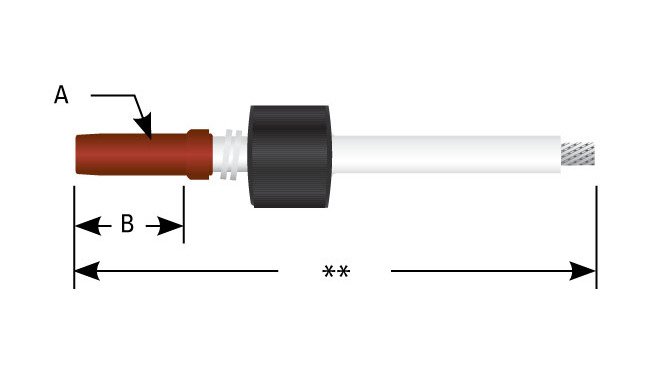

Dimensions A Diameter
.287 in | 7.2 mm
Dimensions B
1.80 in | 45.7 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 3I
Specifications Mating Compatibility
All C 740 series receptaclesAll LGH 3I series receptacles
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 740
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
50 kVDC
Specifications Voltage Rating
40 kVDC
Specifications Wire Insulation
White 0.300 Dia. silicone rubber, #AWG 16
Specifications Wire Pn
178-6147
