High Voltage Single Pin Connector Assembly - Series C 730 Cable Assembly Non-Positive Stop
High Voltage Single Pin Connector Assembly - Series C 730 Cable Assembly Non-Positive Stop
SKU:HIG-e4889d
High voltage Series C 730 Cable Assembly for up to 50 kVDC, featuring secure threading and LGH™ compatibility.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Single Pin Connector Assembly - Series C 730 Cable Assembly Non-Positive Stop
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Single Pin Connector Assembly - Series C 730 Cable Assembly Non-Positive Stop
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 730 Cable Assembly Single-Ended Plug is designed for high voltage applications up to 50 kVDC, with a current rating of 10A and operating temperature range of -55 to 95°C. This non-standard part features plastic insulator material, gold-finished BeCu contacts for reliable conductivity, and is threaded for secure coupling. Compliant with LGH™ 1/2I compatibility, this assembly meets rigorous standards for altitude pressure, insulator thickness, and RoHS requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

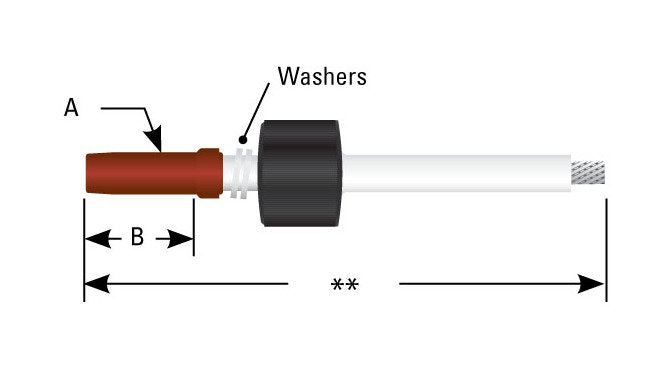

Dimensions A Diameter
.186 in | 4.7 mm
Dimensions B
.530 in | 13.4 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
All C 730 series receptaclesAll series 730 receptaclesAll LGH 1/2I series receptacles.
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 730
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
15 kVDC
Specifications Voltage Rating
10 kVDC
Specifications Wire Insulation
White 0.160 Dia. silicone rubber, #AWG 16
Specifications Wire Pn
R790-3516-6
