High Voltage Single Pin Connector Cable Assembly
High Voltage Single Pin Connector Cable Assembly
SKU:HIG-e617b6
High voltage cable assembly with 10A current rating, 15 kVDC test voltage, and RoHS compliant. Durable BeCu contact material for secure connections.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Single Pin Connector Cable Assembly
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Single Pin Connector Cable Assembly
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 730 Cable Assembly Non-Positive Stop (washers) Single-Ended, Shielded is designed for high voltage applications, featuring a current rating of 10 A and a test voltage of 15 kVDC. With an altitude/reduced pressure rating of 70,000 ft. and operating temperature ranging from -55 to 95 ºC, this cable assembly ensures reliable performance in demanding environments. Its insulator material is plastic, and it is RoHS compliant. The assembly comes with a BeCu contact material with CRES hood and gold contact finish, ensuring secure connections and durability. Suitable for various receptacles, this cable assembly meets industry standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

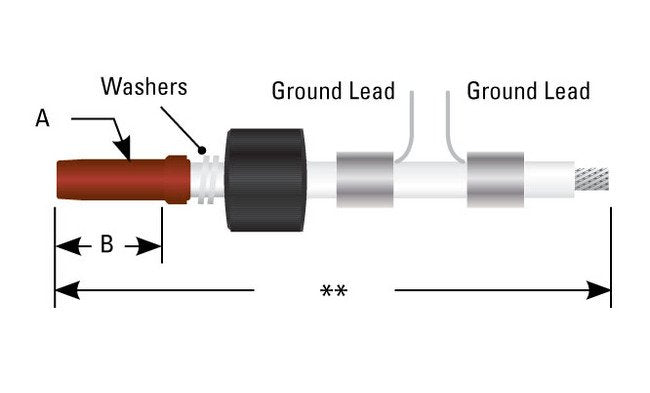

Dimensions A Diameter
.186 in | 4.7 mm
Dimensions B
.530 in | 13.4 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
All C 730 series receptaclesAll series 730 receptaclesAll LGH 1/2I series receptacles.
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 730
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC
Specifications Voltage Rating
10 kVDC
Specifications Wire Insulation
White 0.160 Dia. silicone rubber, #AWG 16
Specifications Wire Pn
R790-3516-2
