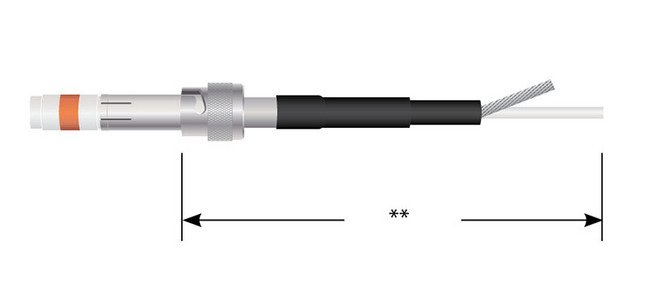

The 521 Series Cable Assembly, Single-Ended offers enhanced user safety with recessed contacts to minimize the risk of electrical shock. Designed for high voltage applications, it features a reliable ground circuit, spring finger body contact, and a bayonet coupling style. With a voltage rating of 25 kVDC and operating temperatures from -40 to 85°C, this assembly ensures safe and efficient electrical connections at altitudes up to 70,000 ft. The plug contact material is BeCu/Au, and the wire insulation is PE, meeting stringent industry standards for performance and safety.
Product Specifications
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
20 A
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
521
Specifications Test Voltage 70000 Ft
41
Specifications Test Voltage At Sea Level
28 kVDC
Specifications Voltage Rating
25 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
