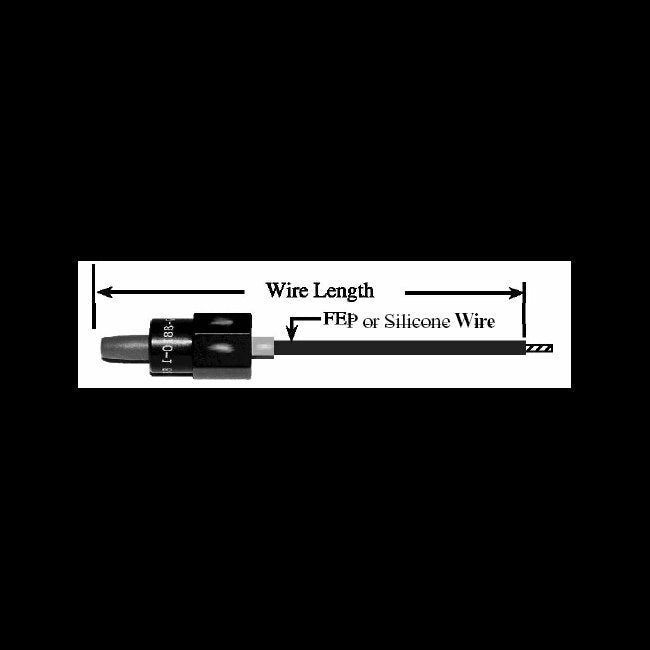

High Voltage Single Pin Connector Plug - Series 730/830 LGH™ Compatible
High Voltage Single Pin Connector Plug - Series 730/830 LGH™ Compatible
SKU:HIG-fa5a55
Enhance reliability with our High Voltage Single Pin Connector Plug - Series 730/830 LGH™ Compatible. Rated up to 25 kVDC, operating from -55°C to 125°C for aerospace and military applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Single Pin Connector Plug - Series 730/830 LGH™ Compatible
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Single Pin Connector Plug - Series 730/830 LGH™ Compatible
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your high voltage connection reliability with our HI-REL Single Pin Connector Plug. Rated from 10 to 25 kVDC with altitudes up to 70,000 ft and a wide operating temperature range of -55°C to 125°C. Incorporating annular sealing rings for improved altitude operation, this plug is ideal for Military/Aerospace applications like ECM, lasers, and high voltage power supplies. With a current rating of 4-6 Amps, mating compatibility with various LGH™ interfaces, and a plastic body design to prevent overtorque damage, this connector is a durable and efficient choice for critical applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates all series 730 & 830 receptacles and all LGH 1/2I series receptacles. Also mates Reynolds C730 receipt axles RC1505,2RC1505 and 3RC1505: this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
830
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at 70,000 ft. (Simulated) at Ambient Temperature
Specifications Voltage Rating
10 kVDC
