High Voltage Single Pin Connector - Ruggedized PeeWee Series
High Voltage Single Pin Connector - Ruggedized PeeWee Series
SKU:HIG-5b1f4e
High voltage single pin connector with black Si-coated FEP wire and Nomex jacket, ideal for various high voltage applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Single Pin Connector - Ruggedized PeeWee Series
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Single Pin Connector - Ruggedized PeeWee Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12-18 kVDC Ruggedized PeeWee Series Single Pin Connector is designed for high voltage applications, featuring a plug straight, single-ended design with a black colored Si-coated FEP wire and Nomex jacket for enhanced durability. With a current rating of 5 Amp and a test voltage of 21 kVDC, this connector is suitable for a wide range of applications including High Voltage Power Supplies, Traveling Wave Tubes, Semi-Conductor Wafer Processing, and more. Meeting industry standards for reliability and performance, this connector ensures secure and efficient power transmission even in challenging environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter

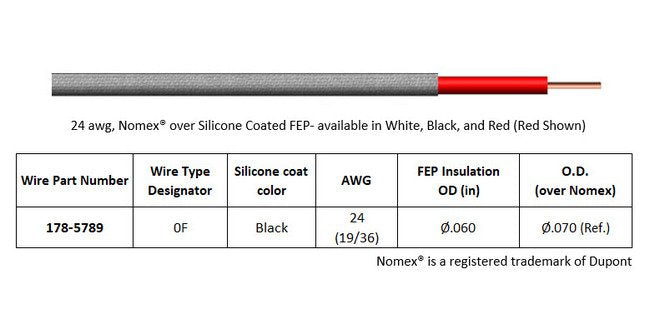

nomex over Ã.060 in
Cable Wire Properties Wire Insulation
Nomex over silicone coated FEP
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Straight, Single-ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
21 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
