High Voltage Single Pin Connector - Ruggedized PeeWee Series 12-18 kVDC
High Voltage Single Pin Connector - Ruggedized PeeWee Series 12-18 kVDC
SKU:HIG-8b6b99
Reliable High Voltage Single Pin Connector for demanding applications, with 19 kVDC test voltage and durable construction.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Single Pin Connector - Ruggedized PeeWee Series 12-18 kVDC
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Single Pin Connector - Ruggedized PeeWee Series 12-18 kVDC
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Single Pin Connector in the Ruggedized PeeWee Series is engineered for reliability in demanding environments. With a current rating of 5 Amp and a test voltage of 19 kVDC, this connector is designed for high voltage applications. Its robust construction, including ThermoPlastic insulator material and silicone coated FEP wire insulation, ensures durability and performance. Ideal for High Voltage Power Supplies, Radar Systems, and Medical instrumentation, this connector meets industry standards for quality and safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter

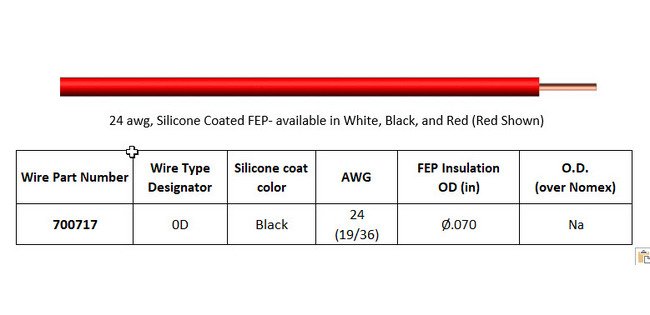

Ã.070 in
Cable Wire Properties Wire Insulation
Silicone coated FEP, black
Contact Properties Contact Diameter Pin Diameter
n/a
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Straight, Single-ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
19 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
