High Voltage Single Pin Connector - Series 310 Shielded Cable Assembly
High Voltage Single Pin Connector - Series 310 Shielded Cable Assembly
SKU:HIG-9e949c
High Voltage Single Pin Connector, Current Rating 10 Amp, Test Voltage 21 kVDC at 70,000 ft., Bayonet Coupling Nut Brass Nickel Finish
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Voltage Single Pin Connector - Series 310 Shielded Cable Assembly
$89.99
Quantity: 1
Claim Your Seller Account
High Voltage Single Pin Connector - Series 310 Shielded Cable Assembly
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

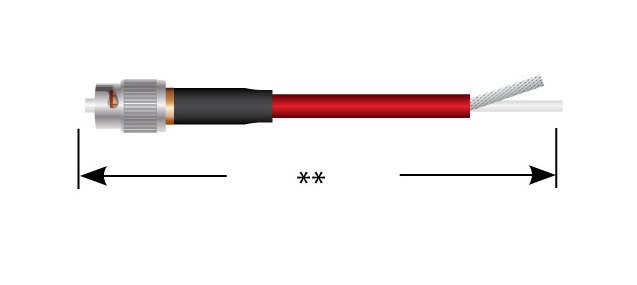

The High Voltage Single Pin Connector - Series 310 Shielded Cable Assembly is designed for demanding environments, with a current rating of 10 Amp and an operating temperature range of -40 to 85°C. This single-ended plug cable assembly is ideal for applications requiring a test voltage of 21 kVDC at 70,000 ft., meeting the needs of high-altitude operations. The bayonet coupling nut made of brass with a nickel finish ensures secure connections, while the compliance with Series 311 Cond. 1 standards guarantees compatibility and reliability in critical settings.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Cable Preparation 0
" Reynolds Industries Inc. - High Voltage Connectors, High Voltage Cable Assemblies, High Voltage Wire, High Voltage Cable, High Voltage Capacitors _uacct = ""UA-425769-1""; urchinTracker(); CLICK HERE FOR A PHOTOGRAPHIC ""HOW TO"" Series 310 (P/N 167-4356) Step 1 Cut cable to length, clean and square. Slip boot and crimp sleeve over cable. Strip outer jacket to dimension shown. Trim exposed braid to dimension. Trim inner insulation to dimension. No nicked or severed strands allowed. Pot tin dip inner conductor using SN60 solder in accordance with J-STD-006. Remove all flux. Step 2 Solder contact in place through hole using SN60 solder in accordance with J-STD-006. No solder buildup allowed on contact outer diameter. Completed solder joint must have a continuous fillet of solder between the inner conductor and the contact. The solder in the feed hole must be free of pinholes and flush or below flush. Rear of contact shoulder shall be as flush as possible with insulation of cable core, but not to exceed .030". Flair braid by moving cable core in a circular motion. Step 3 Solder contact in place through hole using SN60 solder in accordance with J-STD-006. Completed solder joint must have a continuous fillet of solder between the conductor and the contact. The solder in the feed hole must be free of pinholes and flush or below flush. Rear of contact shoulder shall be as flush as possible with insulation of cable core, but not to exceed .030"". Download this page as a PDF for best print quality. "
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Bayonet Coupling Nut Finish
Nickel
Specifications Bayonet Coupling Nut Material
Brass
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 Amp
Specifications End 1
167-4356
Specifications End 2
Pig Tail
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates series 311 Cond. 1 receptacles and adaptors.
Specifications Operating Temperature
-40 to 85 ºC
Specifications Polarization
Cond. 1
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
310
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
21 kVDC at 70000 ft. (simulated) and ambient temperature
Specifications Voltage Rating
15 kVDC
