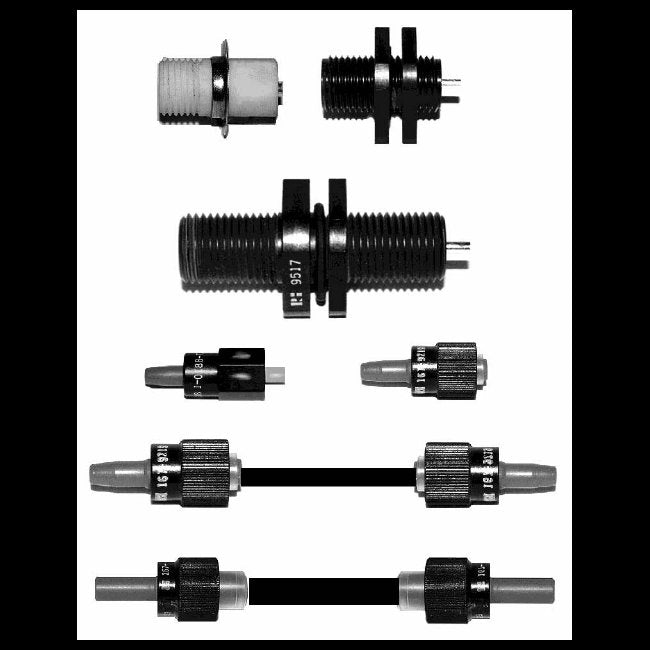

High Voltage Single Pin Connector - Series 720 Plug Bag Assembly
High Voltage Single Pin Connector - Series 720 Plug Bag Assembly
SKU:HIG-f59274
Reliable high voltage single pin connector tested for 20 kVDC, ideal for extreme conditions. Mates with various receptacles, LGH⢠1/2I compatible.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Single Pin Connector - Series 720 Plug Bag Assembly
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Single Pin Connector - Series 720 Plug Bag Assembly
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 720 Plug Bag Assembly is a high voltage single pin connector designed for reliability in demanding environments. With a voltage rating of 20 kVDC and a current rating of 10 Amp, this connector is suitable for applications requiring secure connectivity under extreme conditions. It features a threaded coupling style for a secure connection, mating compatibility with various receptacles, and a plastic coupling nut material for durability. Tested at 25 kVDC simulation at 70,000 ft., this connector ensures performance at high altitudes and temperatures ranging from -55 to 125 ºC. Compliant with LGH⢠1/2I compatibility, this standard part is a reliable choice for high voltage applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
Mates all series 720 receptacles and all LGH LI series receptacles. Also mates Reynolds C720 receptacles RC1525 and 3RC1525; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
720
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
20 kVDC
