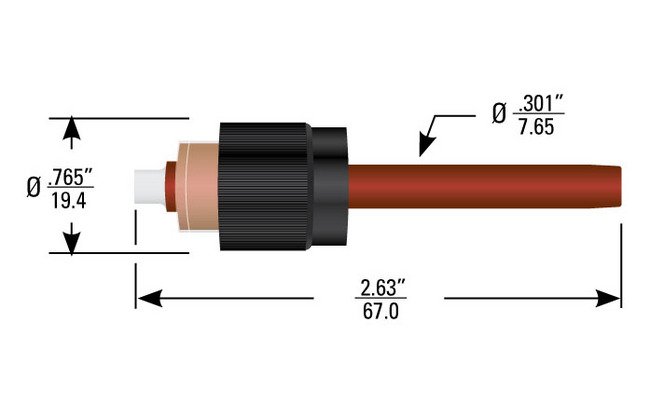

High Voltage Single Pin Connector Series 727 Plug Kit
High Voltage Single Pin Connector Series 727 Plug Kit
SKU:HIG-153a86
High voltage Series 727 Plug Kit with silicone insulator, threaded assembly, and gold-finished BeCu female contact. Reliable up to 70,000 ft altitudes.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Single Pin Connector Series 727 Plug Kit
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Single Pin Connector Series 727 Plug Kit
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 727 Plug Kit is designed for high reliability in 10, 15, 20, and 25 kVDC applications. Featuring silicone insulator for 0.280 Dia. wire and compatibility with LGH 1LI series receptacles, this threaded plug assembly ensures secure connections at altitudes up to 70,000 ft. With a current rating of 10 Amp, operating temperature range of -55 to 125 °C, and test voltage of 25 kVDC, this kit meets stringent industry standards for high voltage connectors. The gold-finished BeCu female contact and stainless steel contact hood provide exceptional performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Contact Properties Female Contact Hood Material
Stainless Steel
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 2.5 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Silicone
Specifications Lgh Compatibility
LGH 1LI
Specifications Mating Connectors
Mates all series 727 receptacles and all LGH 1LI series receptacles. Also mates Reynolds C727 receptacle RC1535 ; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
727
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
25 kVDC
Specifications Wire Type
Silicone
Wire Properties Accomodates Wire Diameter
.280 in | 7.11 mm
Wire Properties Wire Pn
167-9180
