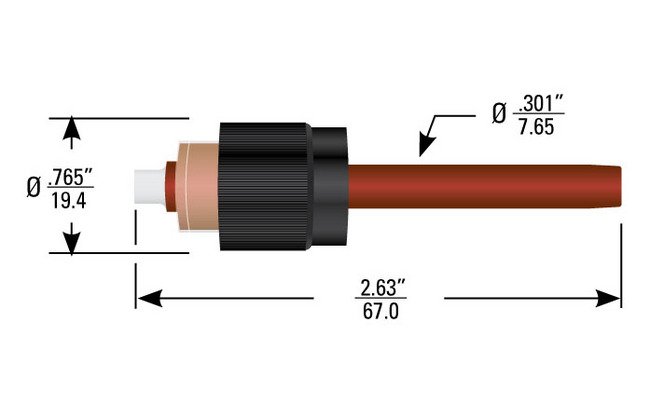

High Voltage Single Pin Connector Series 727 Plug Kit
High Voltage Single Pin Connector Series 727 Plug Kit
SKU:HIG-5458a4
Reliable High Voltage Single Pin Connector Kit for LGH™ Systems, Silicone Insulator, 25 kVDC, Gold-finished BeCu Contacts
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Single Pin Connector Series 727 Plug Kit
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Single Pin Connector Series 727 Plug Kit
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Single Pin Connector Series 727 Plug Kit is designed for compatibility with LGH™ systems, offering reliable performance in demanding environments. This plug bag assembly features a silicone insulator suitable for 0.180 Dia. wire, facilitating a current rating of 10 Amp | 2.5 Amp. With a voltage rating of 25 kVDC and a test voltage of 25 kVDC at 70,000 ft., this non-standard part ensures secure connections at altitudes up to 70,000 ft. Its threaded coupling style, gold-finished BeCu female contacts, and stainless steel female contact hood material guarantee lasting durability and conductivity. Meet your high-voltage connectivity needs with confidence and precision using this compliant and high-quality plug kit.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Contact Properties Female Contact Hood Material
Stainless Steel
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Plug Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 2.5 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Silicone
Specifications Lgh Compatibility
LGH 1LI
Specifications Mating Connectors
Mates all series 727 receptacles and all LGH 1LI series receptacles. Also mates Reynolds C727 receptacle RC1535 ; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
727
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
25 kVDC
Specifications Wire Type
FEP
Wire Properties Accomodates Wire Diameter
.180 in | 4.57 mm
Wire Properties Wire Pn
167-9611
