The Series C 737 Cable Assembly Positive Stop (ferrule) Single-Ended is a high-quality solution designed for high voltage applications up to 50 kVDC. Featuring a Single-Ended Plug Cable Assembly with a current rating of 10 A, this cable assembly is meticulously engineered for reliability in challenging environments, with an altitude/reduced pressure rating of 70,000 ft. Its temperature range of -55 to 95 °C and insulator material of Plastic ensure optimal performance. With gold-finished BeCu contacts and a voltage rating of 15 kVDC, it guarantees secure connections and efficient power transmission. This non-standard part is compatible with LGH™ 1/2I leads and meets stringent industry standards for quality and safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

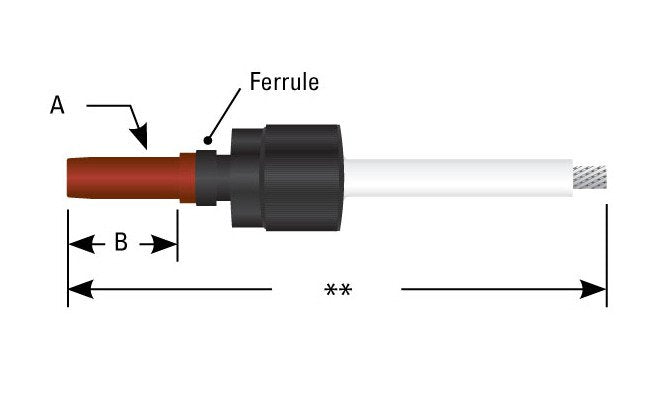

Dimensions A Diameter
.191 in | 4.85 mm
Dimensions B
.89 in | 22.6 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
All C 737 lead assembliesAll series 737 lead assembliesAll LGH 1/2I lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 737
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
White 0.160 Dia. silicone rubber, #AWG 16
Specifications Wire Pn
178-7200
