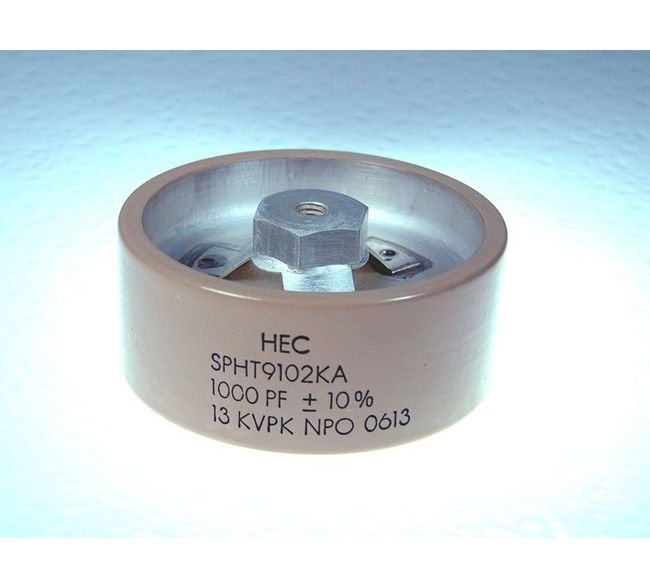

High Voltage SPHT 70 mm Ceramic Capacitors, 1000 pF, N750 TC, 11 kVDC

Name: High Voltage SPHT 70 mm Ceramic Capacitors, 1000 pF, N750 TC, 11 kVDC
Brand: High Energy Corp.
SKU: CER-0d9151
Price: 49.99 USD
Availability: OutOfStock

SKU:CER-0d9151

High Voltage SPHT 70 mm Ceramic Capacitors - Ideal for high-power applications with up to 11 kVDC, 1000 pF capacitance, and N750 TC.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your power systems with our SPHT 70 mm Diameter Power Disk Ceramic Capacitors. With a high working voltage of up to 11 kVDC, power ratings reaching 90 kVA, and a capacitance range of 50 to 7000 pF, these capacitors offer exceptional performance. The choice of four Class I TC's ensures precise temperature compensation, while the compact 70 mm diameter and durable M6 thread cater to versatile installation needs. Ensure reliable operation with a wide frequency range, low dissipation factor, and high voltage rating.

Product Specifications

Specifications Cap

1000 pF

Specifications Diameter

70 mm

Specifications Dielectric Tc

N750

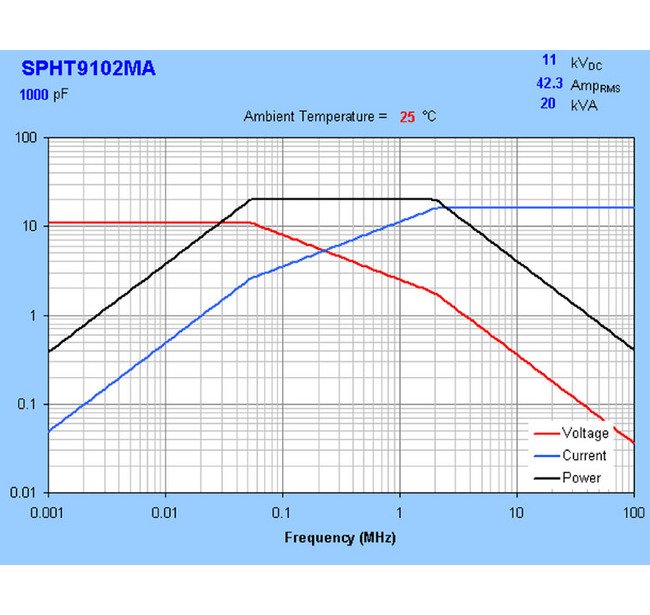

Specifications Fh

2.03 MHz

Specifications Fl

0.0526 MHz

Specifications Imax Rms

16 A

Specifications Smax

20 kV·A

Specifications Thread

Specifications Vmax Dc

11 kV
