High Voltage SPHT Ferris Wheel Ceramic Capacitors: Class 1 components with exceptional ratings for RF applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage SPHT Ferris Wheel Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage SPHT Ferris Wheel Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPHT Ferris Wheel Ceramic Capacitors from the SPHT Series are Class 1 components known for their exceptional High Voltage, Current, and Power ratings, making them ideal for demanding applications such as RF transmitter circuits and antenna couplings. Featuring a 'Ferris-Wheel' configuration, these capacitors offer low self-inductance, low dissipation factors, and a robust construction ensuring a long trouble-free lifespan. With a phenolic resin coating and a long flashover path, these capacitors are available in eight Class I dielectrics, providing a wide range of capacitance and temperature coefficients.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cap
100 pF
Specifications Capacitance Tolerance
From ±2.5% to ±20% and from ±2.5 pF to ±1 pF
Specifications Dielectric Strength Test
Will withstand a DC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Dielectric Tc
NP0
Specifications Dimension L
80 mm

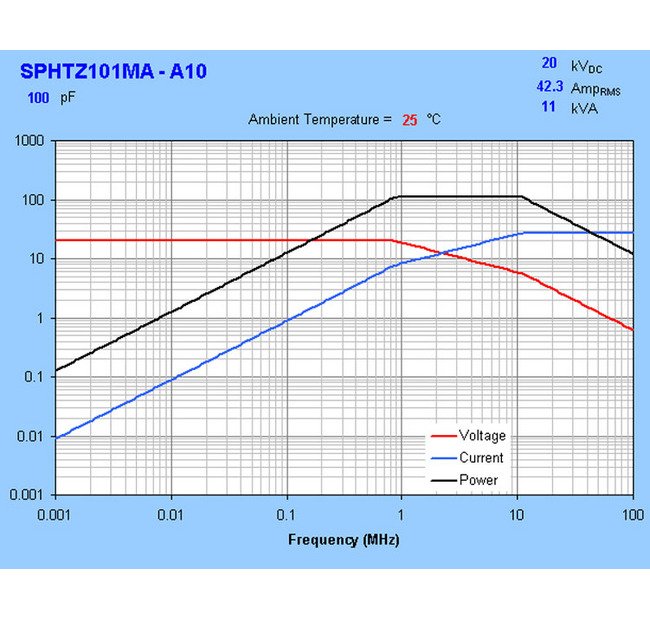

Specifications Fh
10.9 MHz
Specifications Fl
0.875 MHz
Specifications Humidity Protection
Nonconductive Coating
Specifications Imax Rms
27.5 A
Specifications Maximum Dissipation Factor
0.1% to 0.5%
Specifications Minimum Insulation Resistance
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
110 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), TC and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 20 inch-pounds or less
Specifications Vmax Dc
20 kV
