High Voltage SPHT Ferris Wheel Ceramic Capacitors
High Voltage SPHT Ferris Wheel Ceramic Capacitors
SKU:CER-f21593
High Voltage SPHT Ferris Wheel Ceramic Capacitors with exceptional ratings and innovative design for RF applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage SPHT Ferris Wheel Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage SPHT Ferris Wheel Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPHT Ferris Wheel Ceramic Capacitors from our High Voltage SPHT Series are designed for Class 1 applications, offering exceptional voltage, current, and power ratings with low self-inductance. Featuring the innovative 'Ferris-Wheel' configuration, these capacitors ensure low dissipation factors and a long, trouble-free lifespan. Built with a phenolic resin coating and a long flashover path, they come in eight Class I dielectrics, providing a wide capacitance and temperature coefficient range. Ideal for RF transmitter circuits, antenna couplings, and high-power RF applications.
Product Specifications
Specifications Cap
1000 pF
Specifications Capacitance Tolerance
From ±2.5% to ±20% and from ±2.5 pF to ±1 pF
Specifications Dielectric Strength Test
Will withstand a DC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Dielectric Tc
N470
Specifications Dimension L
80 mm

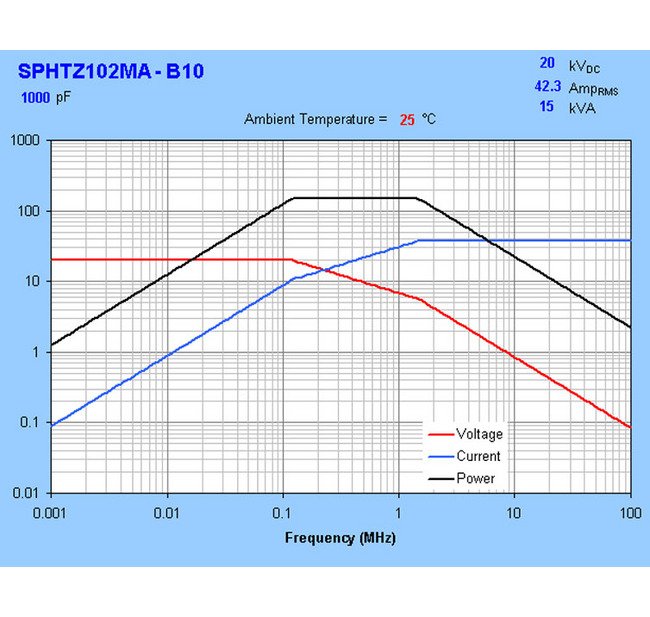

Specifications Fh
1.49 MHz
Specifications Fl
0.119 MHz
Specifications Humidity Protection
Nonconductive Coating
Specifications Imax Rms
37.5 A
Specifications Maximum Dissipation Factor
0.1% to 0.5%
Specifications Minimum Insulation Resistance
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
150 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), TC and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 20 inch-pounds or less
Specifications Vmax Dc
20 kV
