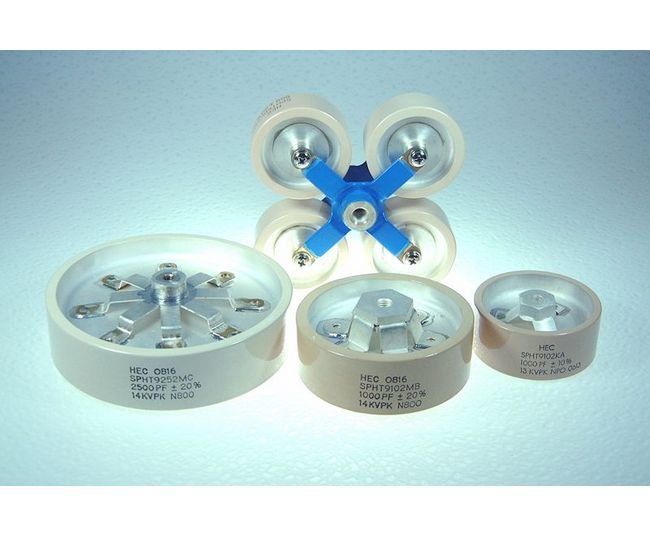

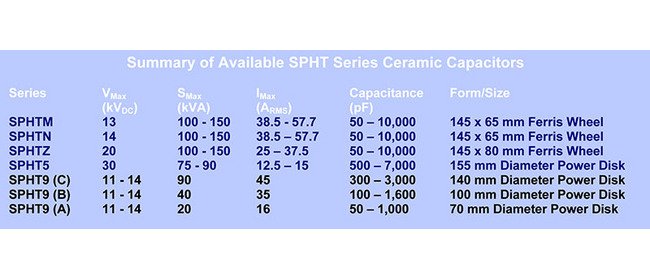

The SPHT Ferris Wheel Ceramic Capacitors, part of the SPHT Series, are Class 1 components designed for high voltage, current, and power applications. With a low dissipation factor and a robust 'Ferris-Wheel' configuration, these capacitors offer reliability and longevity. Featuring a phenolic resin coating and a variety of Class I dielectrics, they meet stringent RF transmitter circuit and antenna coupling requirements. Ideal for high-power RF applications, these capacitors assure exceptional performance even in challenging environments.
Product Specifications
Specifications Cap
3000 pF
Specifications Capacitance Tolerance
From ±2.5% to ±20% and from ±2.5 pF to ±1 pF
Specifications Dielectric Strength Test
Will withstand a DC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.

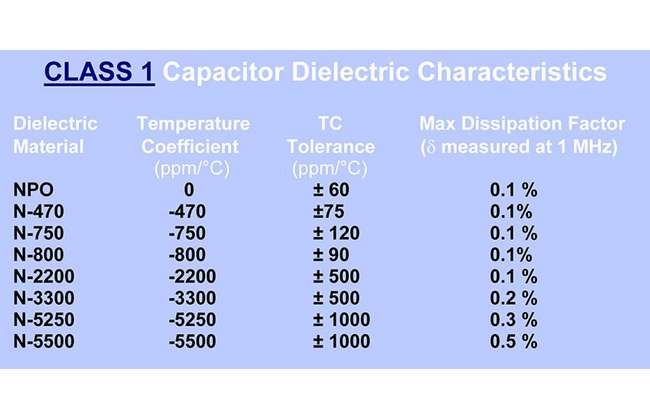

Specifications Dielectric Tc
N3300
Specifications Dimension L
80 mm
Specifications Fh
0.497 MHz
Specifications Fl
0.0398 MHz
Specifications Humidity Protection
Nonconductive Coating
Specifications Imax Rms
37.5 A
Specifications Maximum Dissipation Factor
0.1% to 0.5%
Specifications Minimum Insulation Resistance
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
150 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), TC and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 20 inch-pounds or less
Specifications Vmax Dc
20 kV
