High-Voltage SPHT Ferris Wheel Ceramic Capacitors
High-Voltage SPHT Ferris Wheel Ceramic Capacitors
SKU:CER-bf58e0
High-performance SPHT Ferris Wheel Ceramic Capacitors with up to 20 kV voltage ratings and exceptional stability for RF applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
High-Voltage SPHT Ferris Wheel Ceramic Capacitors
$69.99
Quantity: 1
Claim Your Seller Account
High-Voltage SPHT Ferris Wheel Ceramic Capacitors
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPHT Ferris Wheel Ceramic Capacitors from the SPHT Series are high-performance Class 1 capacitors designed to meet the stringent requirements of RF transmitter circuits, antenna couplings, and high-power RF applications. With voltage ratings up to 20 kV, low dissipation factors, and a choice of eight Class I dielectrics, these 'Power-Disk' capacitors offer exceptional stability and reliability. The Ferris Wheel configuration ensures efficient power handling and low self-inductance, while the phenolic resin coating and long flashover path guarantee a long trouble-free lifespan. Ideal for applications demanding high voltage, current, and power ratings, these capacitors are a cost-effective and innovative solution for critical electronic systems.
Ready to Grow Without Cash Flow Constraints?

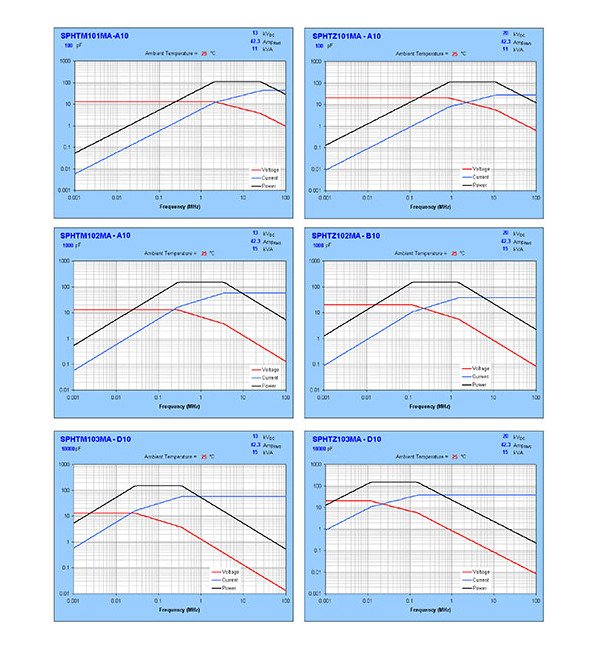

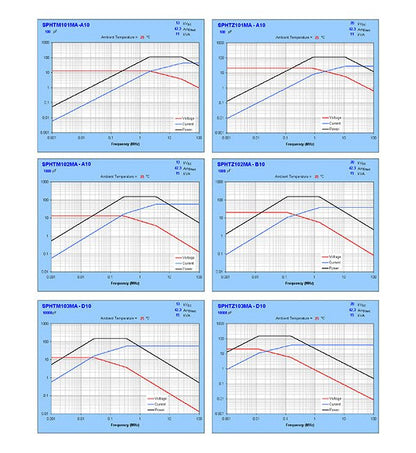

Product Specifications
Specifications Cap
50 to 10000 pF
Specifications Capacitance Tolerance
±5% | ±10% | ±20%
Specifications Dielectric Strength Test
Will withstand a DC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Dielectric Tc
NP0 | N470 | N800 | N3300 | N5250
Specifications Humidity Protection
Nonconductive Coating
Specifications Maximum Dissipation Factor
0.1% to 0.5%
Specifications Minimum Insulation Resistance
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), TC and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 20 inch-pounds or less
Specifications Thread
5/16-18 | M10 | M8
Specifications Vmax Dc
12 kV | 13 kV | 20 kV
