High Voltage Standard Micapacitors 10 kVDC Rated
High Voltage Standard Micapacitors 10 kVDC Rated
SKU:HIG-ed688a
Reliable High Voltage Micapacitors 10 kVDC Rated, precision engineering for high energy applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage Standard Micapacitors 10 kVDC Rated
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage Standard Micapacitors 10 kVDC Rated
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

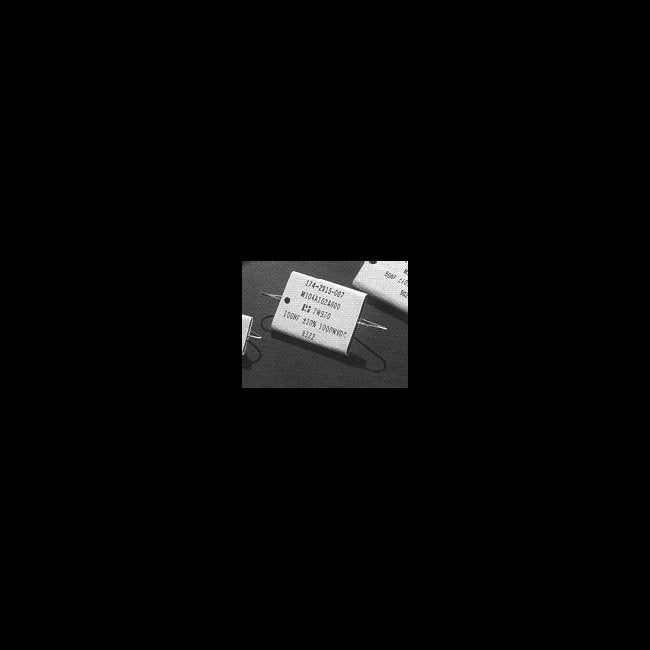

Experience reliable performance and precise capacitance control with our High Voltage Standard Micapacitors 10 kVDC Rated. Featuring a capacitance tolerance of ±10%, a low dissipation factor of 0.005 at 25°C, and a dielectric withstanding voltage of 10 kV rated, these capacitors ensure exceptional insulation resistance. With dimensions of 1.56" x 0.90" x 0.19" and AWG 18 solder coated copper wire leads, our capacitors are ideal for high energy applications. Each unit is mylar wrapped and epoxy endcapped with safety leads shorted for secure handling.
Product Specifications
Cable Preparation Insulation Resistance
25 MΩ*µF at125°C, need not exceed 1GΩ | 4000 MΩ*µF at25°C, need not exceed 100GΩ
Specifications Capacitance
1 nF
Specifications Capacitance Tolerance
±10%
Specifications Dielectric Withstanding Voltage
10 kV rated | 13.75 kV burn-in for 2 hours at 100°C | 17.5 kV proof for 5 seconds
Specifications Dissipation Factor
0.005 Max. at 25°C, 1 kHZ

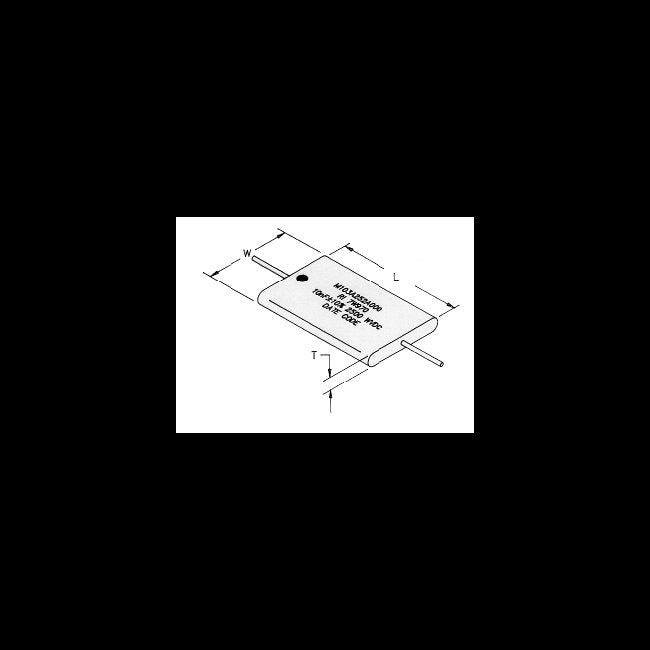

Specifications Length
1.56 in | 39.6 mm
Specifications Standardnon Standard
Standard Part
Specifications Thickness
0.19 in | 4.8 mm
Specifications Voltage Rating
10 kVDC
Specifications Width
0.90 in | 22.9 mm
