High Voltage Threaded Panel Connector - Series 31 Coaxial Connector

Name: High Voltage Threaded Panel Connector - Series 31 Coaxial Connector
Brand: Teledyne Reynolds
SKU: HIG-a71edf
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-a71edf

Reliable High Voltage Panel Connector with Bayonet coupling, Brass construction, and 6.5 kVDC voltage rating.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The High Voltage Threaded Panel Connector from the Series 31 Coaxial Connector line is a robust solution for high voltage applications, featuring a Bayonet coupling style, Brass body properties with Gold Plated finish, and Brass contact material. It is designed for a current rating of 10 Amp, with a voltage rating of 6.5 kVDC and a test voltage of 7.5 kVDC. The connector is ideal for institutional and government procurement needs, meeting strict standards for Altitude/Reduced Pressure, Operating Temperature, Mating Compatibility, and more.

Product Specifications

Body Properties Coupling Nut Finish

Gold Plated

Body Properties Coupling Nut Material

Brass

Contact Properties Contact Material

Brass

Specifications Altitudereduced Pressure Rating

Sea Level

Specifications Assembly Type

Receptacle Bag Assembly

Specifications Coupling Style

Bayonet

Specifications Current Rating

10 Amp

Specifications Export Classification

TBD

Specifications Mating Compatibility

Mates all Series 311 Cond. 1 receptacles and adaptors.

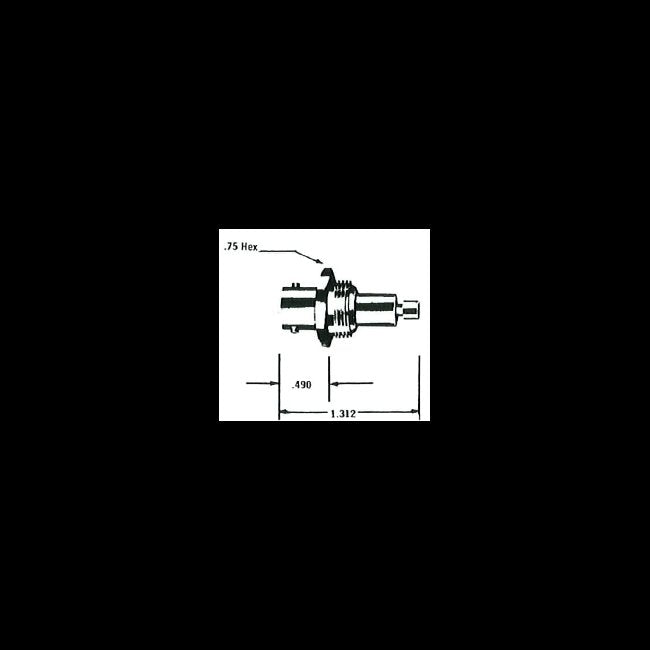

Specifications Mounting Notes

Panel Thread to be 1/2-28 UNEF

Specifications Operating Temperature

-40 to 85 ÂºC

Specifications Polarization

Cond. 1

Specifications Rohs Compliant

TBD

Specifications Sealed Receptacle

Specifications Series

Specifications Standardnon Standard

Non-standard Part

Specifications Test Voltage

7.5 kVDC for 15 sec.

Specifications Voltage Rating

6.5 kVDC

High Voltage Threaded Panel Connector - Series 31 Coaxial Connector
