High-Volume Food Transfer Pump - 1.2L Discharge Rate
High-Volume Food Transfer Pump - 1.2L Discharge Rate
SKU:FOO-1443e3
Efficiently transfer high-viscosity foods with precision using this rotary vane pump.
Regular price
$7,450.00
Regular price
Sale price
$7,450.00
Unit price
per
Initiate Order
High-Volume Food Transfer Pump - 1.2L Discharge Rate
$7,450.00
Quantity: 1
Claim Your Seller Account
High-Volume Food Transfer Pump - 1.2L Discharge Rate
$7,450.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

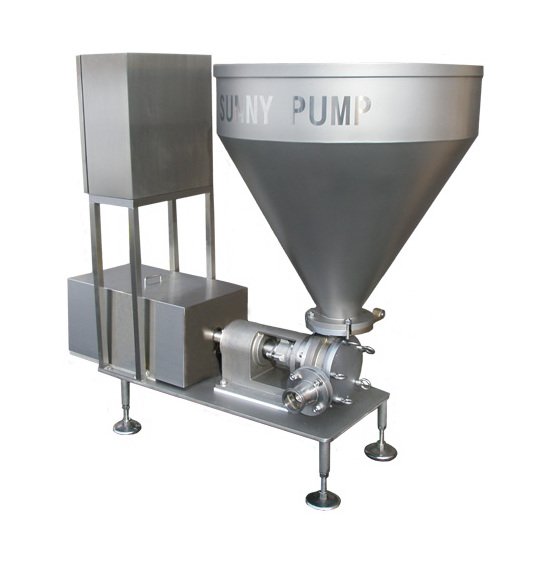

The 1.2 Liter Discharge Rate Per Revolution Food Transfer Pump by Hitec Food Equipment, Inc. is designed for efficient and gentle transfer of various high-viscosity foods like hamburger steak, dumpling materials, and fish paste. With a rotary vane type pump that maintains material quality, this pump ensures consistent pressure and less fluctuation, ideal for quality food transfer needs. It features a range of hopper capacities, optional devices for customization, and a reliable power setup for continuous operation.
Product Specifications
Features Features

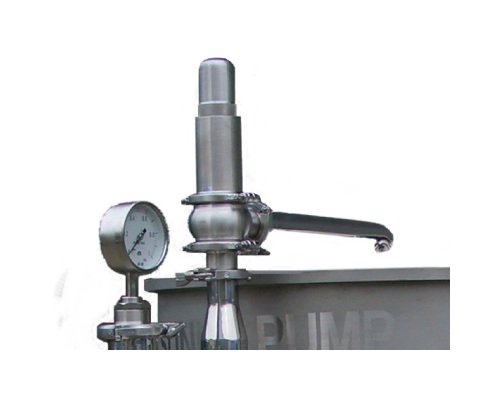

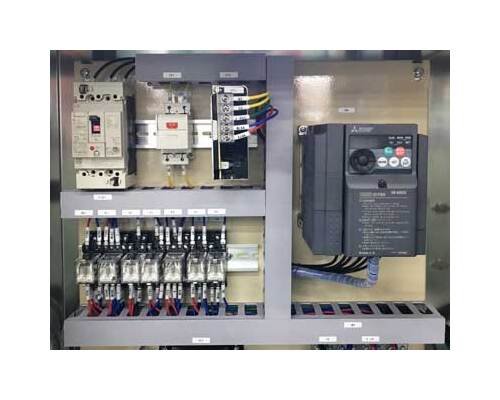

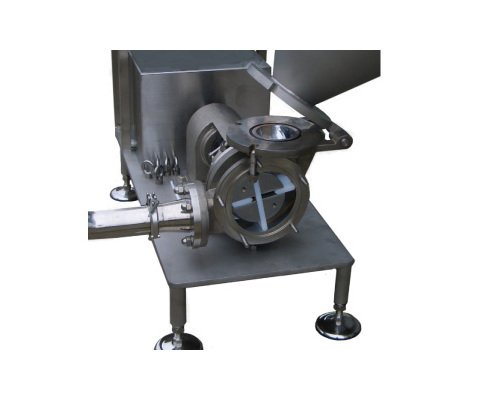

A Rotary Vane Type Machine That is Gentle with Even Coarse Minced MeatThe vane pump ensures smooth feeding of the raw material without crushing the meat. Plating finish on the inside of the pump housing and UHMWPE (Ultrahigh Molecular Weight Polyethylene) vane ensure longer life of the housing. The inside area where the raw material passes can be easily disassembled for cleaning, maintenance allowing a high standard of sanitation.Relief Valve ModelConstant pressure device will prevent deterioration in the meat quality and it will improve stuffing accuracy during stuffing. We also have SPS-V series with relief valve available as a low price model.Simple Speed SettingAs the speed can be set easily by means of the inverter control and starting power is required, the pump rotates smoothly.
Note Note

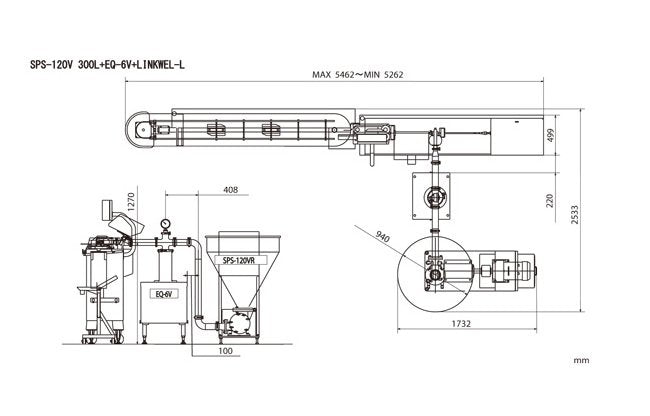

Specifications and equipment are subject change without any obligation on the part of manufacturer.The above production rate is subject to change due to the conditions such as production item, factory and other conditions.Layout dimension includes dimension of optional equipment.
Technical Specs Brands
Hitec Food Equipment, Inc.
Technical Specs Discharge Rate Per Revolution
1.2 L | 0.32 gal
Technical Specs Height For 300 Liter L Capacity Hopper
1,470 mm
Technical Specs Height For 500 Liter L Capacity Hopper
1,860 mm
Technical Specs Height For 900 Liter L Capacity Hopper
1,580 mm
Technical Specs Hopper Capacity
300 L | 500 L | 900 L | 132 gal | 237.8 gal | 79.3 gal
Technical Specs Length For 300 Liter L Capacity Hopper
1,730 mm
Technical Specs Length For 500 Liter L Capacity Hopper
1,730 mm
Technical Specs Length For 900 Liter L Capacity Hopper
2,220 mm
Technical Specs Maximum Discharge Rate
2,333 kg/h | 5,130 lb/hr
Technical Specs Optional Devices
Lifting DeviceReliefMagnetic FilterAgitatorResidual Detect SensorCleaning Pig System for Pipeline
Technical Specs Phase
3
Technical Specs Power
3.7 kW
Technical Specs Pump Revolution Speed
30 ~ 60 rpm
Technical Specs Stuffing Rate
2,000 kg/h | 4,400 lb/hr
Technical Specs Width For 300 Liter L Capacity Hopper
940 mm
Technical Specs Width For 500 Liter L Capacity Hopper
940 mm
Technical Specs Width For 900 Liter L Capacity Hopper
1,290 mm
