High-Volume Magnetic Coolant Filtration System
High-Volume Magnetic Coolant Filtration System
SKU:SPE-33e494
Efficiently purify coolant with our High-Volume Magnetic Coolant Filtration System. Enhance tool longevity and operational efficiency.
Regular price
$9,999.00
Regular price
Sale price
$9,999.00
Unit price
per
Initiate Order
High-Volume Magnetic Coolant Filtration System
$9,999.00
Quantity: 1
Claim Your Seller Account
High-Volume Magnetic Coolant Filtration System
$9,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High-Volume Magnetic Coolant Filtration System is an indispensable tool for centralized coolant systems. Featuring a robust 12-inch diameter magnetic drum, this system efficiently removes contaminants to ensure clean coolant circulation. With a Motor Power of 1/4 hp and a capacity of 60 gpm, it boosts operational efficiency while prolonging tool and equipment lifespan. This system not only delivers uniform part finishes but also reduces maintenance costs and downtime, making it a cost-effective solution for industrial applications.
Product Specifications
Manufacturing Notes 0
Listed are the most popular sizes. For special applications consult the factory
Specifications Advantages
Having clean coolant is cost effective. Not only does it allow uniform part finish, but you can expect longer life from tools and grinding wheels, reduced pump and machine wear, lower coolant replacement costs, and less down time.
Specifications Capacity
60 gpm

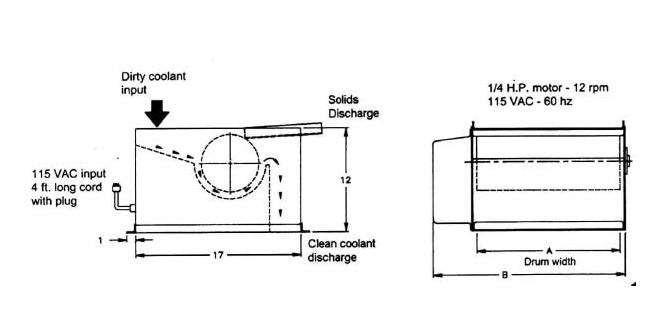

Specifications Dimension A
26 1/2 in
Specifications Dimension B
30 3/4 in
Specifications Magnetic Drum Diameter
12 in
Specifications Magnetic Drum Width
36 in
Specifications Motor Frequency
60 Hz
Specifications Motor Input Voltage Ac
115 V
Specifications Motor Power
1/4 hp
Specifications Motor Speed
12 rpm
Specifications Weight
190 lb
