High Volume Silicon Monoxide/Zinc Sulphide Baffled Box Sources
High Volume Silicon Monoxide/Zinc Sulphide Baffled Box Sources
SKU:BAF-446d6a
Premium double shielded sources for Silicon Monoxide/Zinc Sulphide. Molybdenum, Niobium, and Tantalum construction. Custom evaporation source available.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Volume Silicon Monoxide/Zinc Sulphide Baffled Box Sources
$129.99
Quantity: 1
Claim Your Seller Account
High Volume Silicon Monoxide/Zinc Sulphide Baffled Box Sources
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

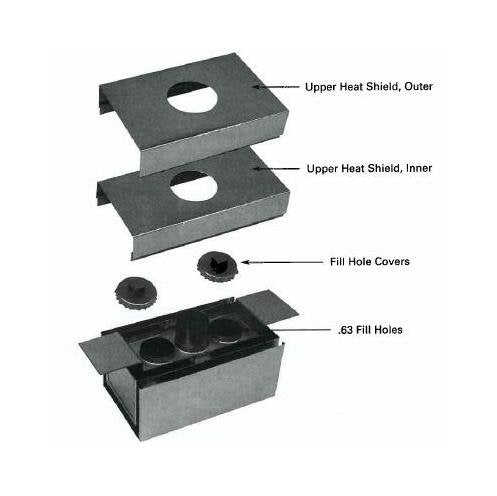

The Double Shielded Silicon Monoxide/Zinc Sulphide Sources in our Baffled Box Sources line are meticulously crafted for superior performance. With precise dimensions and a volume of 90 cm³, these sources are ideal for subliming materials like Silicon Monoxide and Zinc Sulphide. Crafted with Molybdenum upper heat shields, Niobium lower heat shields, and Tantalum heater and fill hole covers, these sources ensure optimal evaporation processes. Available options include Down or Side Evaporation Source upon request.
Product Specifications
Manufacturing Notes 0
Available on request : Down or Side Evaporation Source.

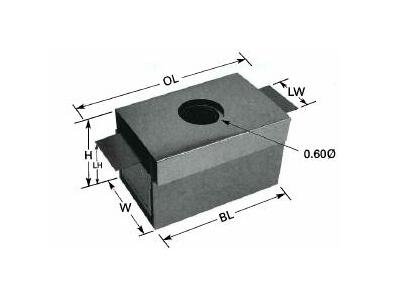

Specifications Dimension Bl
2.88 in
Specifications Dimension H
3.42 in
Specifications Dimension Lh
3 in
Specifications Dimension Lw
1.500 in
Specifications Dimension Ol
4.0 in
Specifications Dimension W
2.30 in
Specifications Material
Molybdenum (Mo) - Upper Heat Shields | Niobium (Nb) - Lower Heat Shields | Tantalum (Ta) - Heater and Fill Hole Covers
Specifications Volume
90 cm³
