High-Wattage SD Series Electromagnetic Chuck Controller

Name: High-Wattage SD Series Electromagnetic Chuck Controller
Brand: Magnetool, Inc.
SKU: SDS-49a083
Price: 799.99 USD
Availability: OutOfStock

SKU:SDS-49a083

High-power electromagnetic chuck controller for precise demagnetization & efficient operation in industrial settings.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

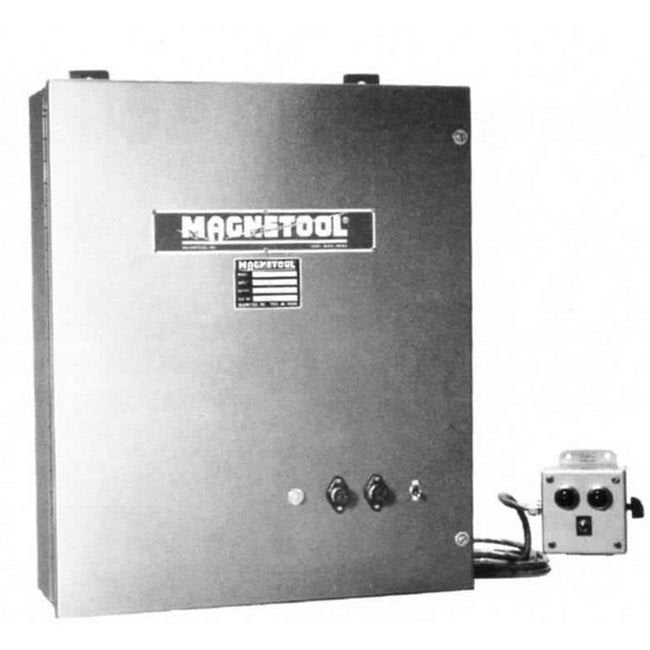

The SD Series Automatic Electromagnetic Chuck Controller is designed for applications requiring high chuck demagnetization levels and chucks with high wattage ratings. With a power rating of 1500W, AC input options of 240V or 480V, and DC output voltage ranging from 0 to 110V, this controller ensures precise and efficient operation. Its features include a 'Residual Hold' function, solid-state circuitry, dust-tight main enclosure, and an electronic Step-Down Demagnetizing Cycle. The compact remote control unit offers convenient operation with indicating lamps for easy monitoring. Additionally, the variable power switch allows for adjustable power settings, enhancing versatility and usability.

Product Specifications

Additional Information 0

The green light indicates power is on. The red light indicates the chuck has power. When the control switch is turned to "Mag-Off" the red light will gradually fade out. The operator can then remove the work with ease. The variable power switch on the side can be dialed for full power to residual.

Manufacturing Notes 0

0 to 230 VDC output available on request.

Specifications Ac Input Voltage

240 V | 480 V

Specifications Dc Output Voltage

0 to 110 V

Specifications Features

Specifications Input Frequency

60 Hz

Specifications Main Enclosure Depth

11 in

Specifications Main Enclosure Height

24 in

Specifications Main Enclosure Width

20 in

Specifications Power

1500 W

High-Wattage SD Series Electromagnetic Chuck Controller
