Highly Accurate Dual-PID Temperature Controller with 100-240V AC Voltage
Highly Accurate Dual-PID Temperature Controller with 100-240V AC Voltage
SKU:PRO-3db3d9
Get precise temperature control with Autonics USA 100-240V Temperature Controller. Dual-PID, relay output, alarm outputs & more.
Regular price
$173.95
Regular price
Sale price
$173.95
Unit price
per
Initiate Order
Highly Accurate Dual-PID Temperature Controller with 100-240V AC Voltage
$173.95
Quantity: 1
Claim Your Seller Account
Highly Accurate Dual-PID Temperature Controller with 100-240V AC Voltage
$173.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

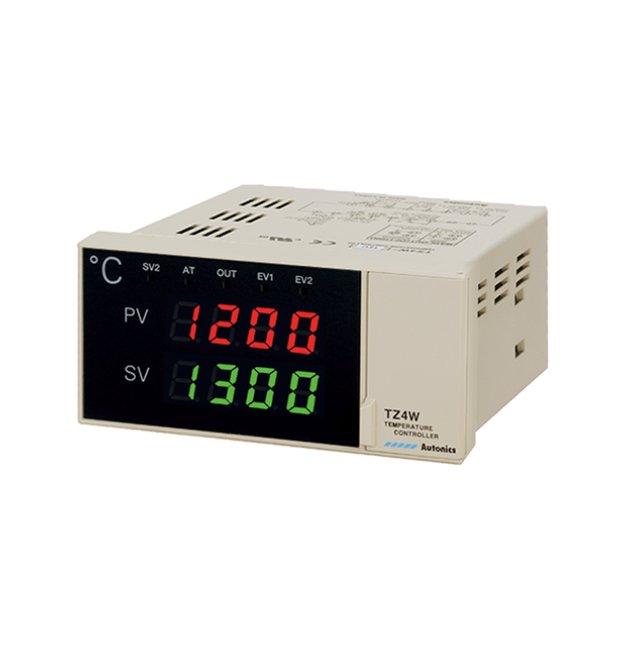

Experience precise temperature control with the Autonics USA Temperature Controller. This digital controller supports various control methods such as PIDF and PIDS, ensuring optimal performance. With relay output, dual alarm outputs, and compatibility with different input specifications including thermocouple and RTD, this controller offers versatile functionality. It meets Canadian, US, and European conformity standards, providing reliability and safety in diverse environments.
Product Specifications
Specifications Alarm Output
Alarm1+Alarm2
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Relay Contact Output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
96 x 48 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
48 mm
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
173.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1/2
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
246 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
365 g
Specifications Weight
0.82 lb
Specifications Width
96 mm
