Highly Accurate Universal Load Cell Load Buttons
Highly Accurate Universal Load Cell Load Buttons
SKU:LOA-e220fb
Accurate Universal Load Cell Load Buttons for precise weight readings in various applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Highly Accurate Universal Load Cell Load Buttons
$69.99
Quantity: 1
Claim Your Seller Account
Highly Accurate Universal Load Cell Load Buttons
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Universal Load Cell Load Buttons are precision-engineered accessories designed to ensure accurate weight readings in diverse applications. With a height ranging from 9/16 inches to 1-1/2 inches and a radius of 4.000 inches, these load buttons provide reliable and consistent results. They are constructed to meet the stringent standards of federal and institutional procurement requirements, making them ideal for a wide range of industrial and commercial settings.
Product Specifications

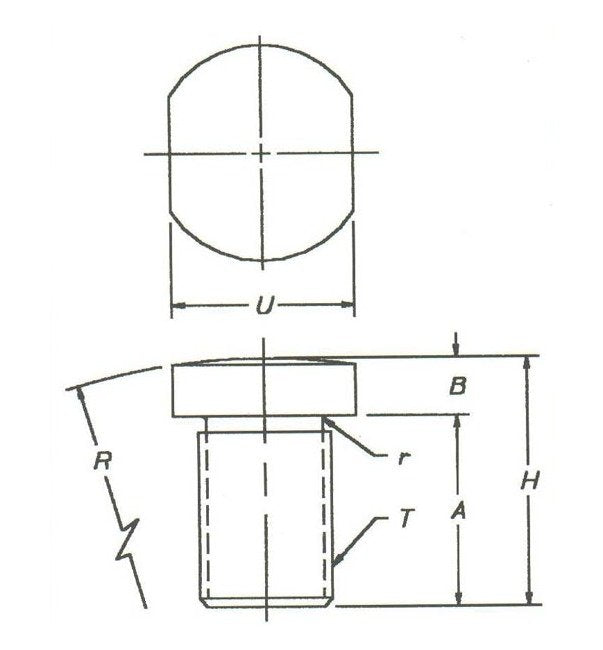

Dimensional Drawing Dimensional Drawing
Universal Load Cell Accessories
Specifications A Height
15/16 in
Specifications B Height
9/16 in
Specifications H Height
1-1/2 in
Specifications R Radius
4.000 in
Specifications T Thread Size
7/16-20UNF-2A
Specifications U Width
9/16 in
