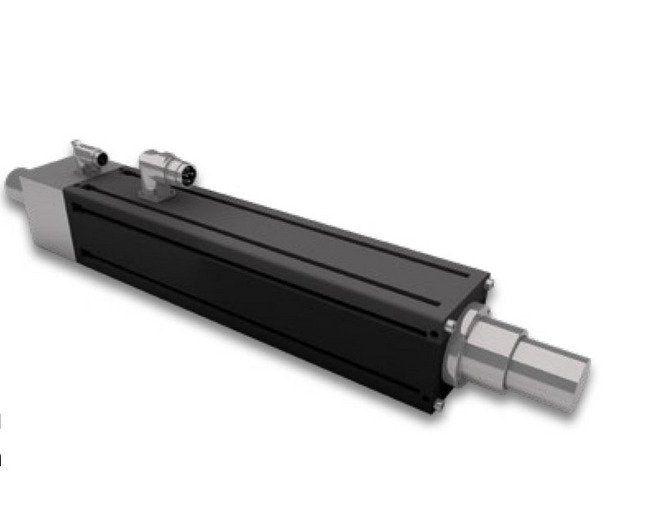

Highly Dynamic Linear Motor SL Series 1581N, 30A, 325V
Highly Dynamic Linear Motor SL Series 1581N, 30A, 325V
SKU:LIN-8cedd4
Powerful SL Series 1581N Linear Motor - precise, low noise, high force, with CE & UL certifications.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
Highly Dynamic Linear Motor SL Series 1581N, 30A, 325V
$1,399.99
Quantity: 1
Claim Your Seller Account
Highly Dynamic Linear Motor SL Series 1581N, 30A, 325V
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled performance with the SL Series 1581N Linear Motor. Boasting a peak force of 1581N and peak current of 30A at 25°C ambient temperature, this motor offers precise positioning, high force, and low noise operation. With integrated linear encoder, industry-standard certifications like CE and UL, and protection class IP65, it meets the highest quality standards for institutional applications.
Product Specifications
Features Features
Force modePrecise positioningMaintenance freeLow noiseHigh ForceHigh dynamicFood gradeSpecial SurfaceVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
615 W
Technical Specs Feedback Integrated
Bidirectional Serial Synchronous (BISS) | Synchronous Serial Interface (SSI) | Transistor-Transistor Logic (TTL)
Technical Specs Forcer Mass
3.0 kg
Technical Specs Force Constant At 25 Degree Celsius C Temperatur
52.7 pk
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Speed At 100 Degree Celsius C Temperatur
4.7 m/s
Technical Specs Nominal Current At 100 Degree Celsius C Temperat
2.4 A
Technical Specs Nominal Direct Current Dc Voltage
325 V
Technical Specs Nominal Force At 100 Degree Celsius C Temperatur
126 N
Technical Specs Note For Maximum Speed At 100 Degree Celsius C T
Moving motor housing with 2xxx mm stroke
Technical Specs Note For Peak Acceleration At 100 Degree Celsius
Moving magnetic rod with 2x mm stroke
Technical Specs Note For Peak Acceleration Sl 38 C
Moving motor housing with 2xxx mm stroke
Technical Specs Peak Acceleration At 100 Degree Celsius C Temper
>200 m/s²
Technical Specs Peak Current At 25 Degree Celsius C Temperature
30 A
Technical Specs Peak Force At 25 Degree Celsius C Temperature
1581 N
Technical Specs Peak Power
3690 W
Technical Specs Pole Pitch
51.2 mm
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rod Mass
8.3 kg/m
