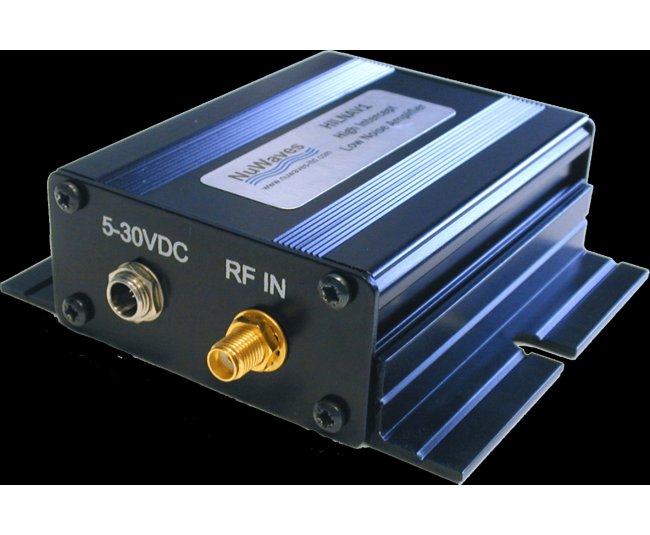

Hilna™ G2V1 Low Noise Amplifier
Hilna™ G2V1 Low Noise Amplifier
SKU:HIG-6b7841
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hilna™ G2V1 Low Noise Amplifier
$49.99
Quantity: 1
Claim Your Seller Account
Hilna™ G2V1 Low Noise Amplifier
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
This high-performance module delivers 40 dB of gain over the frequency range of 50 MHz to 1000 MHz, with an OIP3 of +32 dBm and less than 1 dB of noise figure. The HILNA G2V1 is also usable up to 2000 MHz with 28 dB of gain (typ). NuWaves’ HILNA G2V1™ is a broadband low noise amplifier designed to achieve high gain while maintaining low noise and a high third-order intercept point from VHF to microwave frequencies. The HILNA G2V1’s robust power supply also operates over a very broad range easily allowing the unit to be integrated into systems without regard to power supply precision. Custom Solutions Available: Other Bandwidths Military Screening Form Factors Filtering Gain For an option with mounting flanges, please use P/N: HILNA-G2V1-M/F
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
40 dB
Specifications Input Supply Vdc
5 - 20
Specifications Maximum Frequency
1000 MHz
Specifications Minimum Frequency
50 MHz
Specifications Noise Figure Typ
0.8 dB
Specifications Size Lx W X H
3.15 x 2.50 x 1.18 Inch
Specifications Weight
5 oz
